Réduction des gaz d'échappement for BMW 3 Series E21 320i

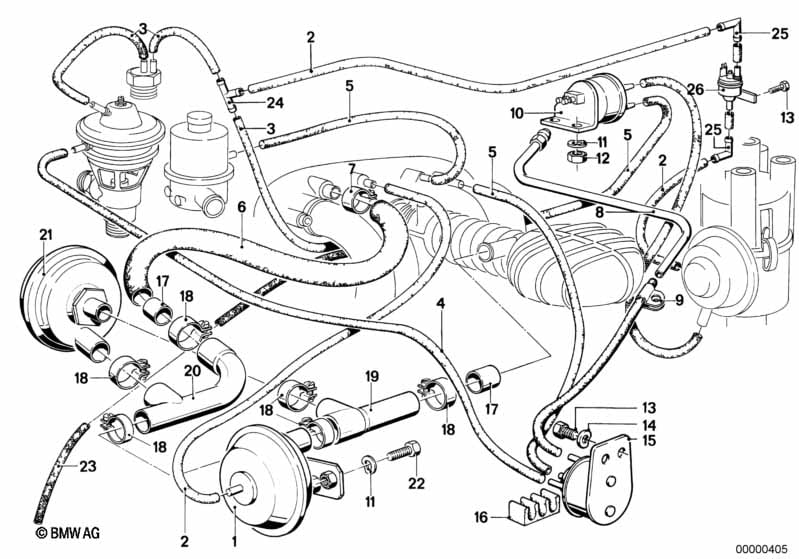

This Réduction des gaz d'échappement technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Limiteur de depression | 1 | 09/1979 | 11741264747 | $128.27 | arrêté | Shop at ECS Tuning | |||
| 02 | Tuyau de depression noir | 3,5X1,8 | X | 09/1979 | 11727545323 | $14.82 | Shop at ECS Tuning | |||
| 03 | Tuyau de depression rouge | 3,3X1,8 | X | 09/1979 | 11747797050 | $17.32 | Shop at ECS Tuning | |||
| 04 | Tuyau de depression bleu | 3,3X1,8 | X | 09/1979 | 11747797082 | $17.14 | Shop at ECS Tuning | |||
| 05 | Tuyau de depression blanc | 3,3X1,8 | X | 09/1979 | 11747797177 | $17.14 | Shop at ECS Tuning | |||
| 06 | Tuyau d'air | 1 | 09/1979 | 11741264752 | $5.46 | arrêté | Shop at ECS Tuning | |||
| 07 | Collier | L18-24 | 1 | 09/1979 | 07129952109 | $1.07 | Shop at ECS Tuning | |||
| Pour véhicules avec Californie version |
=Non |
|||||||||
| 08 | Tuyau | 1 | 09/1979 | 11731264158 | $68.36 | arrêté | Shop at ECS Tuning | |||
| Pour véhicules avec Californie version |
=Oui |
|||||||||
| 08 | Tuyau | 1 | 09/1979 | 11731264748 | $77.56 | arrêté | Shop at ECS Tuning | |||
| 09 | Collier de tuyau | 1 | 09/1979 | 11731264159 | arrêté | Shop at ECS Tuning | ||||
| 10 | Thermovalve | 1 | 09/1979 | 11741264080 | arrêté | Shop at ECS Tuning | ||||
| 11 | Rondelle élastique noire | B6-ZN | 4 | 09/1979 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 12 | Ecrou à six pans | M6-8-ZNNIV SI | 2 | 09/1979 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 13 | Vis six pans | M5X10 | 2 | 09/1979 | 07119913218 | $0.12 | Shop at ECS Tuning | |||
| 14 | Rondelle elastique | B5 | 2 | 09/1979 | 07119932098 | $0.38 | Shop at ECS Tuning | |||
| Pour véhicules avec Californie version |
=Non |
|||||||||
| 15 | Convertisseur de pression | 1 | 09/1979 | 11741264702 | $118.96 | Shop at ECS Tuning | ||||
| Pour véhicules avec Californie version |
=Oui |
|||||||||
| 15 | Convertisseur de pression | 1 | 09/1979 | 11741264701 | arrêté | Shop at ECS Tuning | ||||
| 16 | Support | 1 | 09/1979 | 12121353672 | $2.54 | Shop at ECS Tuning | ||||
| 17 | Tuyau | 2 | 09/1979 | 11151262643 | $8.93 | arrêté | Shop at ECS Tuning | |||
| 18 | Collier | L23-29 | 6 | 09/1979 | 07129952111 | $0.93 | arrêté | Shop at ECS Tuning | ||
| 18 | Collier | L16-30 | 6 | 09/1979 | 64218367179 | $1.07 | Shop at ECS Tuning | |||
| 19 | Tuyau | 1 | 09/1979 | 11741264741 | $16.14 | arrêté | Shop at ECS Tuning | |||
| 20 | Tuyau | 1 | 09/1979 | 11741264742 | $8.84 | arrêté | Shop at ECS Tuning | |||
| 21 | Soupape d'air additionnel | 1 | 09/1979 | 11741264850 | $157.36 | arrêté | Shop at ECS Tuning | |||
| 22 | Vis six pans | M6X10-8.8-ZNS3 | 2 | 09/1979 | 07119904633 | $0.20 | Shop at ECS Tuning | |||
| 23 | Tuyau de carburant | 6X11MM | X | 09/1979 | 13311272750 | $11.62 | Shop at ECS Tuning | |||
Note
- arrêté = la pièce n'est plus produite.
