Carter-cylindres-Reniflard/Deshuileur for BMW 7 Series E32 730i (1989)

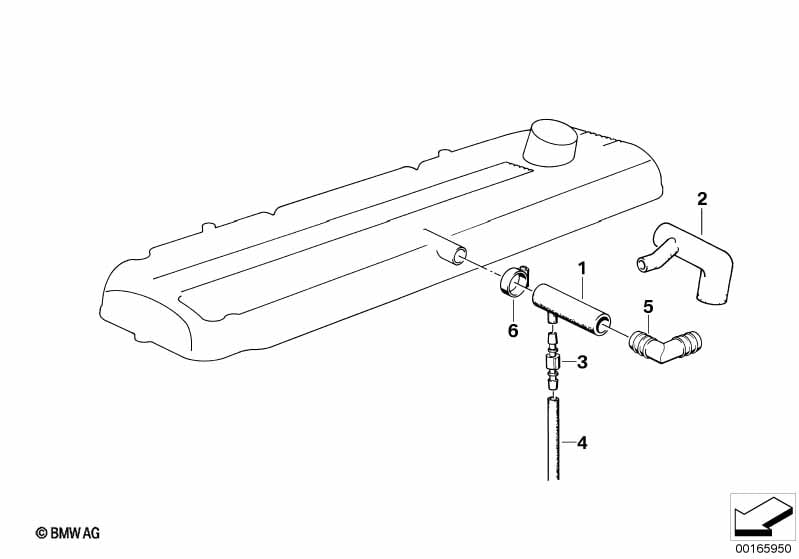

This Carter-cylindres-Reniflard/Deshuileur technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tuyau flexible de ventilation | D=20MM | 1 | 11151276485 | $7.54 | Shop at ECS Tuning | ||||
| Pour véhicules avec EML et ASC |
=Oui =Oui |
|||||||||
| 02 | Tuyau flexible de ventilation | EML | 1 | 11151719841 | $10.07 | Shop at ECS Tuning | ||||
| 02 | Tuyau flexible de ventilation | EML | 1 | 11151719842 | $7.26 | arrêté | Shop at ECS Tuning | |||
| 03 | Raccord | D=4MM | 1 | 11151276486 | $1.08 | Shop at ECS Tuning | ||||
| 04 | Tuyau de depression blanc | 3,3X1,8 | X | 11747797177 | $17.14 | Shop at ECS Tuning | ||||
| 05 | Equerre | 1 | 13541272473 | $1.43 | Shop at ECS Tuning | |||||
| 06 | Collier | L16-30 | 2 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
