Systeme de refroidissement - durit for BMW 3 Series E30 325ix

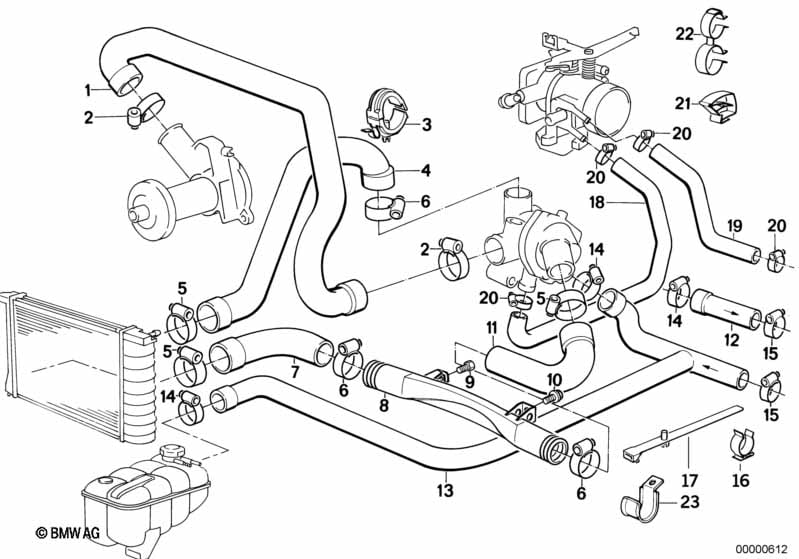

This Systeme de refroidissement - durit technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Durit | 1 | 11531287651 | $37.73 | Shop at ECS Tuning | |||||
| 02 | Collier | L42-48 | 2 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 03 | Support de tuyau | 1 | 11531714433 | $2.39 | Shop at ECS Tuning | |||||
| 04 | Durit | D=46MM | 1 | 11531722216 | $34.33 | Shop at ECS Tuning | ||||
| Pour véhicules avec Climatiseur |
=Oui |
|||||||||
| 04 | Durit | D=46MM | 1 | 11531722217 | $34.57 | Shop at ECS Tuning | ||||
| 05 | Collier | L42-48 | 3 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 06 | Collier | L37-43 | 3 | 07129952117 | $1.09 | Shop at ECS Tuning | ||||
| 07 | Durit | D=47MM | 1 | 11531718980 | $20.38 | Shop at ECS Tuning | ||||
| 08 | Tuyau | 1 | 11531719788 | $225.81 | Shop at ECS Tuning | |||||
| 09 | Vis six pans | M6X16-8.8-ZNS3 | 1 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Vis six pans avec rondelle | M6X16-Z3 | 1 | 07119915123 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Durit | D=45MM | 1 | 11531718982 | $18.87 | Shop at ECS Tuning | ||||
| 12 | Flexible d'alimentation | 1 | 64211380527 | $17.64 | Shop at ECS Tuning | |||||
| 13 | Flexible de retour | 1 | 11531722743 | $88.46 | Shop at ECS Tuning | |||||
| 14 | Collier | L28-33 | 2 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 15 | Collier | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 16 | Collier | D=24,5MM | 2 | 61131379580 | $0.63 | Shop at ECS Tuning | ||||
| 17 | Ruban de câbles avec support | Ø=7,7 / L=200 | 2 | 61136924664 | $0.55 | Shop at ECS Tuning | ||||
| 18 | Durit | 1 | 13541719966 | $17.35 | Shop at ECS Tuning | |||||
| 19 | Durit | 1 | 13541719967 | $16.97 | Shop at ECS Tuning | |||||
| 20 | Collier | L15-18 | 4 | 11151727509 | $1.02 | Shop at ECS Tuning | ||||
| 21 | Attache-câble | 2 | 61131378529 | $0.68 | Shop at ECS Tuning | |||||
