Pièces de bloc-moteur for BMW 3 Series E36 M3 (1995)

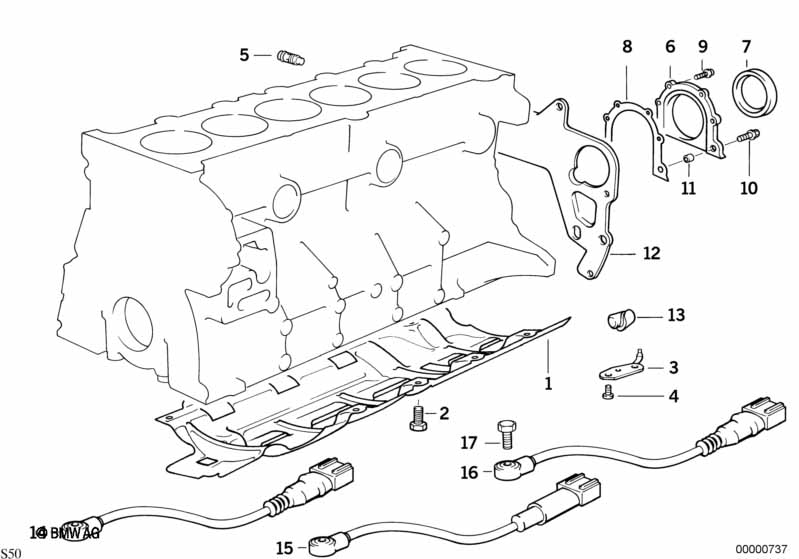

This Pièces de bloc-moteur technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pour véhicules avec Série individuelle 95 GT Internationale |
=Non |
|||||||||
| 01 | Tole a decantation d'huile | 1 | 11131317971 | $32.22 | Shop at ECS Tuning | |||||
| 03 | Gicleur d'huile | 6 | 11421317278 | $19.90 | Shop at ECS Tuning | |||||
| 04 | Vis Torx | M6X10 | 12 | 11421317140 | $0.46 | Shop at ECS Tuning | ||||
| 05 | Vanne d'arret | 1 BAR | 1 | 11111318185 | $41.25 | Shop at ECS Tuning | ||||
| 06 | Jeu de couvercles | 1 | 11142247867 | $94.60 | arrêté | Shop at ECS Tuning | ||||
| 07 | Joint d'arbre | 90X110X12 | 1 | 11142249533 | $58.96 | Shop at ECS Tuning | ||||
| 08 | Joint metal | 1 | 11141432240 | $3.10 | Shop at ECS Tuning | |||||
| 09 | Vis six pans avec rondelle | M6X25-ZNNIV SI | 4 | 04/1993 | 07119905400 | $0.65 | Shop at ECS Tuning | |||
| 10 | Vis six pans avec rondelle | M8X26-Z1-ZNS3 | 2 | 04/1993 | 07119902919 | $0.53 | Shop at ECS Tuning | |||
| 11 | Douille d'ajustage | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 12 | Tôle de recouvrement | 1 | 11141734019 | $11.15 | arrêté | Shop at ECS Tuning | ||||
| 14 | Palpeur de chocs | 1 | 12141738667 | $90.58 | Shop at ECS Tuning | |||||
| 15 | Palpeur de chocs | 1 | 12141401238 | $90.58 | Shop at ECS Tuning | |||||
| 16 | Palpeur de chocs | 1 | 12141401187 | $90.58 | Shop at ECS Tuning | |||||
| 17 | Vis six pans | M8X30-ZN | 3 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
