Carter de distribution for BMW 5 Series E34 525td

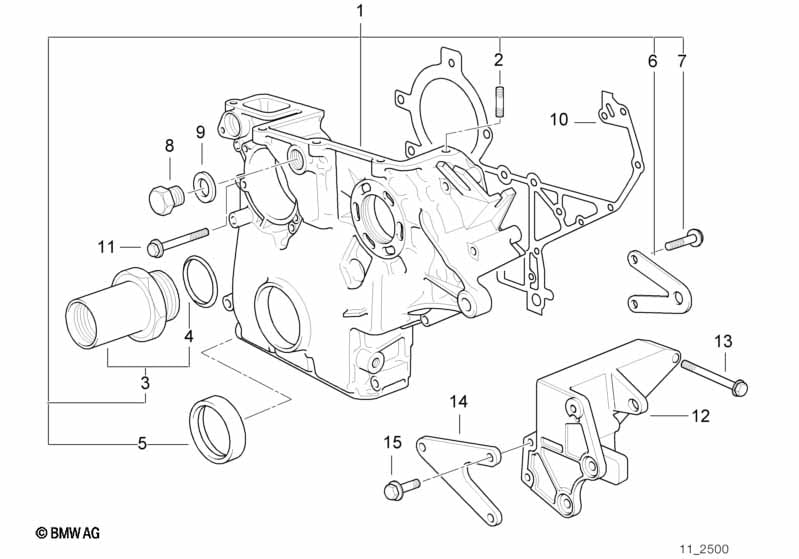

This Carter de distribution technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Couvercle de carter de distribution inf. | 1 | 01/1994 | 11142246189 | +vieille matière | Shop at ECS Tuning | ||||
| 02 | Tige filetée | M6X35-ZNS3 | 1 | 01/1994 | 07129903886 | Shop at ECS Tuning | ||||
| 03 | Boulon de palier | 1 | 01/1994 | 11282243506 | $28.13 | Shop at ECS Tuning | ||||
| 04 | Joint torique | 35,2X3 | 1 | 01/1994 | 13321288696 | $1.88 | Shop at ECS Tuning | |||
| 05 | Joint d'arbre | 48X65X10 | 1 | 01/1994 | 11142249532 | $24.02 | Shop at ECS Tuning | |||
| 06 | Tole de fixation | 1 | 01/1994 | 11142245359 | Shop at ECS Tuning | |||||
| 07 | Vis à collet | M6X18-ZN | 2 | 01/1994 | 11412244722 | $0.53 | arrêté | Shop at ECS Tuning | ||
| 08 | Vis bouchon | M20X1,5 | 1 | 01/1994 | 11141461423 | $7.62 | arrêté | Shop at ECS Tuning | ||
| 09 | Anneau d'étanchéité | A20X24-CU | 1 | 01/1994 | 07119963342 | $0.24 | Shop at ECS Tuning | |||
| 10 | Joint metal | 1 | 01/1994 | 11142245175 | $27.58 | Shop at ECS Tuning | ||||
| 11 | Vis six pans avec rondelle | M6X50-ZNNIV SI | 15 | 01/1994 | 07119905377 | $0.53 | Shop at ECS Tuning | |||
| 12 | Support | 1 | 01/1994 | 12312245747 | Shop at ECS Tuning | |||||
| 13 | Vis six pans avec rondelle | M8X55-U1 | 2 | 01/1994 | 07119905391 | $1.27 | Shop at ECS Tuning | |||
| 14 | Tole support | 1 | 01/1994 | 11162243503 | Shop at ECS Tuning | |||||
| 15 | Vis six pans avec rondelle | M8X20-ZNS3 | 3 | 01/1994 | 07147165618 | $0.73 | Shop at ECS Tuning |
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
- arrêté = la pièce n'est plus produite.
