Commande de compte-tours for BMW E169 (F 650, F 650 ST) F 650 94 (0161)

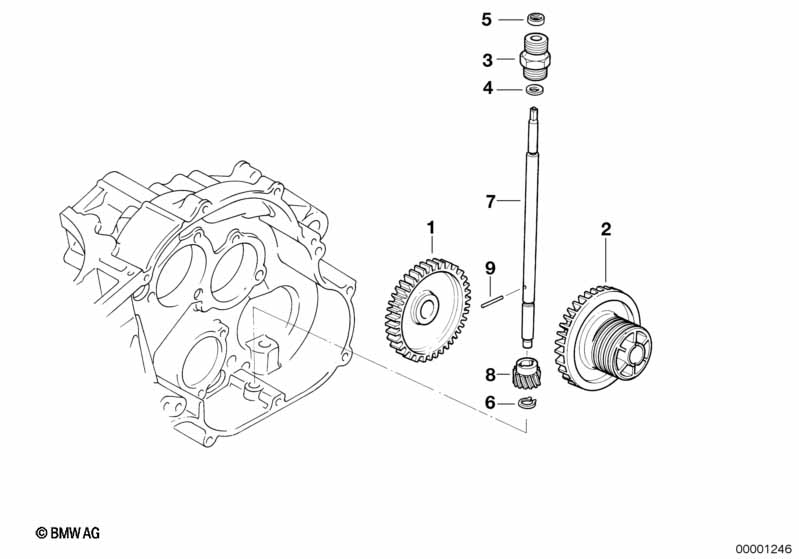

This Commande de compte-tours technical drawing provides a detailed breakdown of the assembly for the E169 (F 650, F 650 ST) F 650 94 (0161). It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pignon | 31 Z | 1 | 11412343110 | $12.44 | Shop at ECS Tuning | ||||
| 02 | Pignon | 15/31 Z | 1 | 11412343112 | $20.06 | arrêté | Shop at ECS Tuning | |||
| 03 | Vis creuse | 1 | 62132343220 | $8.41 | Shop at ECS Tuning | |||||
| 04 | Plaque d'appui | 6,2X12X1 | 1 | 23002343261 | $0.77 | Shop at ECS Tuning | ||||
| 05 | Joint d'arbre | 6X11X4,5 | 1 | 62132343221 | $15.41 | Shop at ECS Tuning | ||||
| 06 | Disque de securite | 1 | 62132343222 | $0.55 | arrêté | Shop at ECS Tuning | ||||
| 07 | Arbre primaire | 1 | 62132343218 | $14.46 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 08 | Roue helicoidale | 1 | 62132343217 | $4.73 | arrêté | Shop at ECS Tuning | ||||
| 09 | Rouleau | 2X11,8 | 1 | 62132343219 | $1.09 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
