Pièces de bloc-moteur for BMW E169 (F 650, F 650 ST) F 650 94 (0161)

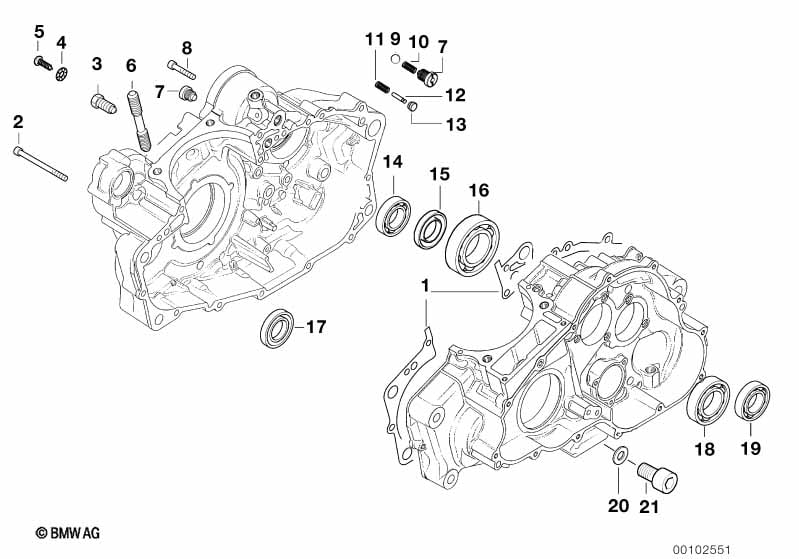

This Pièces de bloc-moteur technical drawing provides a detailed breakdown of the assembly for the E169 (F 650, F 650 ST) F 650 94 (0161). It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Joint | 1 | 11112343012 | $32.16 | Shop at ECS Tuning | |||||
| 02 | Vis cylindrique | M6X75 | 2 | 11112343239 | arrêté | Shop at ECS Tuning | ||||
| 03 | Interrupteur de ralenti | M10 | 1 | 23007676593 | $21.65 | +vieille matière | Shop at ECS Tuning | |||
| 04 | Rondelle grower | A3 | 1 | 17119902542 | arrêté | Shop at ECS Tuning | ||||
| 06 | Goujon | M10X223 | 4 | 11117652940 | $24.34 | Shop at ECS Tuning | ||||
| 07 | Guide de soupape | 2 | 11112343006 | $11.04 | Shop at ECS Tuning | |||||
| 08 | Vis à tête hexagonale avec Torx int. | M6X35-8.8 | 2 | 12317707433 | Shop at ECS Tuning | |||||
| 09 | Bille | 8 | 1 | 11112343224 | $1.58 | arrêté | Shop at ECS Tuning | |||
| 10 | Ressort compr. clapet maintien pression | 1 | 11112343007 | $1.16 | Shop at ECS Tuning | |||||
| 11 | Ressort de pression | 1 | 11112343011 | $1.16 | Shop at ECS Tuning | |||||
| 12 | Goupille | 1 | 11112343008 | $2.78 | Shop at ECS Tuning | |||||
| 13 | Vanne d'arret | 1 | 11112343009 | $3.86 | Shop at ECS Tuning | |||||
| 14 | Roulement à rainure | 17X47X14 | 1 | 11117700322 | $42.59 | Shop at ECS Tuning | ||||
| 15 | Joint d'arbre, arbre de compensation | 15X24X7 | 1 | 11112343019 | $7.08 | Shop at ECS Tuning | ||||
| 16 | Roulement à rainure | 25X62X17 | 1 | 11117658345 | $46.40 | Shop at ECS Tuning | ||||
| 17 | Joint d'arbre, arbre de sortie | 25X40X7 | 1 | 11112343018 | $9.02 | Shop at ECS Tuning | ||||
| 18 | Roulement à rainure | 25X52X15 | 1 | 11112343016 | $30.45 | +vieille matière | Shop at ECS Tuning | |||
| 19 | Roulement à rainure | 17X47X14 | 1 | 11112343014 | $37.73 | Shop at ECS Tuning | ||||
| 20 | Anneau d'étanchéité | A8X13 | 1 | 11112343010 | $0.83 | Shop at ECS Tuning | ||||
| 21 | Vis cylindrique | M8X20-8.8-ZNS3 | 1 | 07119904375 | $0.47 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
