Carter d'huile/indicateur niveau d'huile for BMW 3 Series E30 325ix

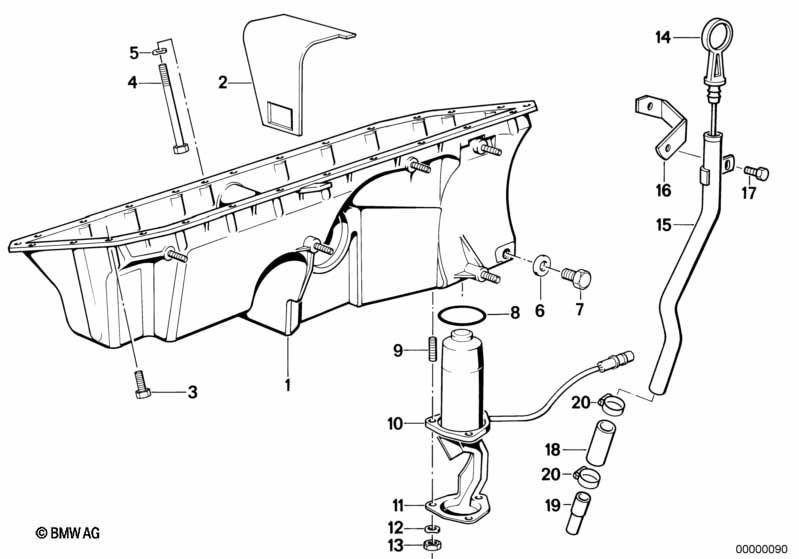

This Carter d'huile/indicateur niveau d'huile technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carter d'huile | 1 | 11131706697 | $730.94 | Shop at ECS Tuning | |||||
| 02 | Recouvrement | 1 | 11131706704 | $5.50 | Shop at ECS Tuning | |||||
| 03 | Vis six pans avec rondelle | M6X20-Z3 | X | 07119915031 | $0.24 | Shop at ECS Tuning | ||||
| 04 | Vis six pans | M6X90 | 2 | 07119912369 | arrêté | Shop at ECS Tuning | ||||
| 05 | Rondelle élastique noire | B6-ZN | 2 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Anneau d'étanchéité | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 07 | Vis bouchon | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 08 | Anneau d'étanchéité | 40X4 | 1 | 12611277129 | $2.09 | Shop at ECS Tuning | ||||
| 09 | Tige filetée | M6X25-ZN | 3 | 07129908100 | $0.20 | Shop at ECS Tuning | ||||
| 10 | Commutateur de reglage de niveau | 1 | 09/1987 | 12611718822 | $154.50 | Shop at ECS Tuning | ||||
| FICHE RECTANGULAIRE | ||||||||||
| 11 | Tôle de recouvrement | 1 | 12611719982 | $6.34 | arrêté | Shop at ECS Tuning | ||||
| 12 | Rondelle élastique noire | B6-ZN | 3 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Ecrou à six pans | M6-8-ZNNIV SI | 3 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 14 | Jauge d'huile | 1 | 01/1988 | 11431726057 | $14.41 | Shop at ECS Tuning | ||||
| 15 | Tuyau de guidage | L=354MM | 1 | 01/1988 | 11431726422 | $56.27 | Shop at ECS Tuning | |||
| 16 | Equerre d'appui | 1 | 08/1988 | 11431716020 | arrêté | Shop at ECS Tuning | ||||
| 17 | Vis six pans | M6X12-8.8-ZNNIV | 1 | 08/1988 | 07119905524 | $0.27 | Shop at ECS Tuning | |||
| 18 | Manchon | 1 | 11431258329 | $2.48 | arrêté | Shop at ECS Tuning | ||||
| 19 | Tuyau de guidage | 1 | 11111273769 | $4.82 | arrêté | Shop at ECS Tuning | ||||
| 20 | Collier | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
