Carter d'huile/indicateur niveau d'huile for BMW 5 Series E39 530d (2000)

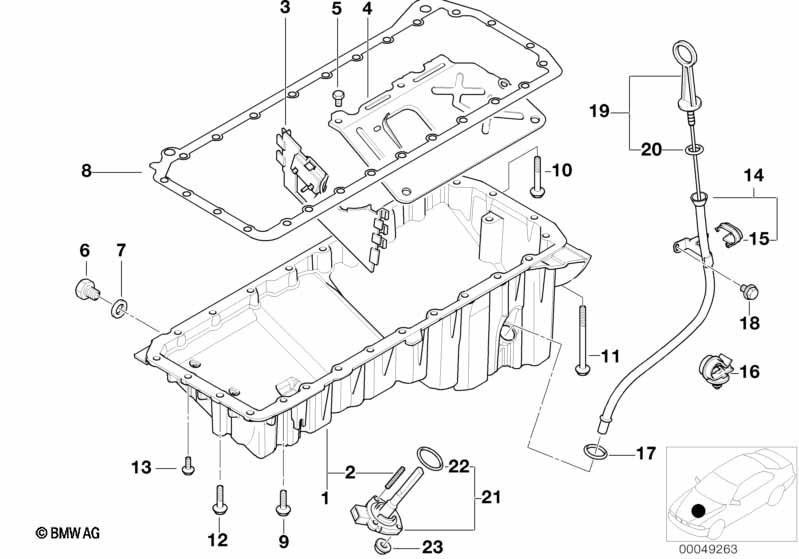

This Carter d'huile/indicateur niveau d'huile technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carter d'huile | 1 | 11132248701 | $596.78 | arrêté | Shop at ECS Tuning | ||||
| 02 | Tige filetée | M6X30-ZNNIV SI | 3 | 07129904544 | $1.42 | Shop at ECS Tuning | ||||
| 03 | Panneau chicane | 1 | 11132246526 | arrêté | Shop at ECS Tuning | |||||
| 04 | Plateau chicane | 1 | 11132246913 | Shop at ECS Tuning | ||||||
| 05 | Vis à collet | M6 X 16 | 5 | 12517805605 | $0.58 | Shop at ECS Tuning | ||||
| 06 | Vis bouchon | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 07 | Anneau d'étanchéité | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 08 | Joint carter d'huile | 1 | 11130149329 | $48.50 | Shop at ECS Tuning | |||||
| 09 | Vis Torx | M6X22 | 17 | 11137800619 | $0.67 | Shop at ECS Tuning | ||||
| 10 | Vis Torx | M6X60-ZNNIV SI | 2 | 11137800622 | $1.08 | Shop at ECS Tuning | ||||
| 11 | Vis Torx | M6X100 | 2 | 11137800623 | $1.65 | Shop at ECS Tuning | ||||
| 12 | Vis ASA | M8X30 | 3 | 11138592611 | Shop at ECS Tuning | |||||
| 13 | Vis Torx | M8X80 | 1 | 11137800624 | Shop at ECS Tuning | |||||
| 14 | Tuyau de guidage | 1 | 11432248844 | Shop at ECS Tuning | ||||||
| 15 | Attache-câble | 13,5X23,5MM | 1 | 61131269331 | $1.22 | arrêté | Shop at ECS Tuning | |||
| 16 | Support de conduite | 1 | 12521741316 | $0.47 | Shop at ECS Tuning | |||||
| 17 | Joint torique | 14X3 | 1 | 11437794698 | $1.19 | Shop at ECS Tuning | ||||
| 18 | Vis six pans avec rondelle | M6X14-U1-8.8 | 1 | 07119905525 | $0.47 | Shop at ECS Tuning | ||||
| 19 | Jauge d'huile | 1 | 11437786015 | Shop at ECS Tuning | ||||||
| 20 | Joint torique | 9X2,2 | 1 | 11431717666 | $0.73 | Shop at ECS Tuning | ||||
| 21 | Capteur de niveau d'huile | 1 | 12617508003 | $163.50 | Shop at ECS Tuning | |||||
| 22 | Anneau d'étanchéité | 1 | 12611744292 | $6.42 | Shop at ECS Tuning | |||||
| 23 | Ecrou à six pans | BM6-8-ZNNIV SI | 3 | 07129905411 | $0.38 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 530d Carter d'huile/indicateur niveau d'huile?
- This technical diagram illustrates the Carter d'huile/indicateur niveau d'huile within the Moteur group for the 5 Series E39 530d produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Carter d'huile (Part #11132248701).
- Which models use the hardware listed in this Carter d'huile/indicateur niveau d'huile?
- The hardware and components featured in the Carter d'huile/indicateur niveau d'huile are specific to the 5 Series E39 530d produced during 2000. These technical specifications ensure that parts like the Carter d'huile (11132248701) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Carter d'huile/indicateur niveau d'huile assembly?
- Each item in the Carter d'huile/indicateur niveau d'huile corresponds to the numbered list below the illustration. For the 5 Series E39 530d, you can identify the Carter d'huile by locating its position on the schematic, which then links to the official BMW part number 11132248701 for the Moteur section.
