Cde des soupapes-soup.d'admiss./d'echap. for BMW 1502-2002tii 2002 (1972)

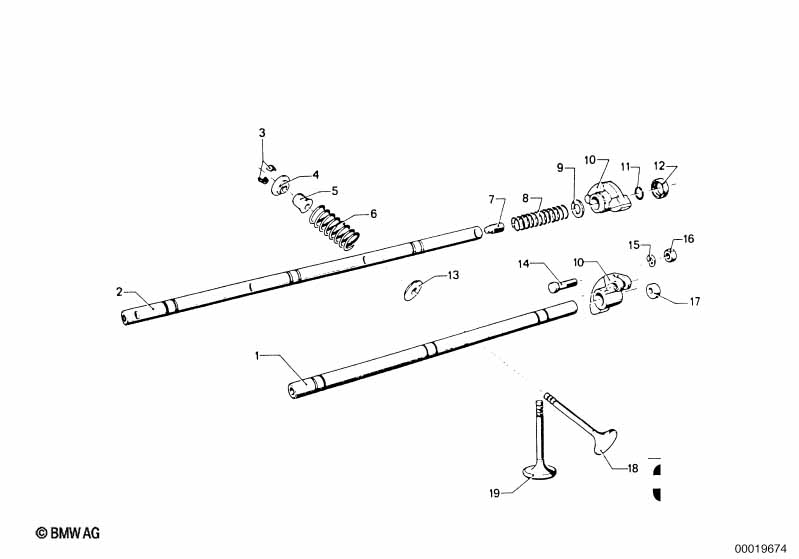

This Cde des soupapes-soup.d'admiss./d'echap. technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1972.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Axe de culbuteur d'admission | 1 | 11330634100 | $37.65 | arrêté | Shop at ECS Tuning | ||||
| 02 | Axe de culbuteur d'échappement | 1 | 11330634105 | $26.92 | arrêté | Shop at ECS Tuning | ||||
| 03 | Demi segment d'arret | 16 | 11341744325 | $1.34 | Shop at ECS Tuning | |||||
| 04 | Cuvette de ressort | 8 | 11341252899 | Shop at ECS Tuning | ||||||
| 05 | Joint de soupape | D=13,9MM | 8 | 11341261269 | Shop at ECS Tuning | |||||
| 06 | Ressort de soupape | L=44,8/D=32,1MM | 8 | 11341276504 | Shop at ECS Tuning | |||||
| 07 | Bouchon | 3 | 11331266400 | $5.48 | Shop at ECS Tuning | |||||
| 08 | Ressort de pression | 8 | 11330634125 | $1.07 | Shop at ECS Tuning | |||||
| 09 | Plaque d'appui | 8 | 11330634140 | $1.85 | Shop at ECS Tuning | |||||
| 10 | Culbuteur | 8 | 11331271833 | $55.08 | Shop at ECS Tuning | |||||
| 11 | Rondelle grower | 8 | 11330634135 | $0.30 | Shop at ECS Tuning | |||||
| 12 | Bague | 8 | 11331744353 | Shop at ECS Tuning | ||||||
| 13 | Cuvette de ressort | 8 | 11340626116 | $3.45 | arrêté | Shop at ECS Tuning | ||||
| 14 | Vis | 8 | 11331744355 | $2.03 | Shop at ECS Tuning | |||||
| 15 | Plaque d'appui | 8 | 11331258327 | $0.10 | Shop at ECS Tuning | |||||
| 16 | Ecrou à six pans | M6 | 8 | 11331744333 | $0.28 | Shop at ECS Tuning | ||||
| 17 | Excentrique | 8 | 11331744354 | $4.92 | Shop at ECS Tuning | |||||
| 18 | Soupape d'échappement | 38,0/8,00MM | 4 | 02/1965 | 07/1976 | 11341251063 | $68.92 | Shop at ECS Tuning | ||
| ZK=E 12 | ||||||||||
| 19 | Soupape d'admission | 46,0/8,00MM | 4 | 04/1971 | 07/1976 | 11341254625 | $38.92 | arrêté | Shop at ECS Tuning | |
| ZK=121 | ||||||||||
| 19 | Soupape d'admission | 44MM | 4 | 01/1968 | 08/1973 | 11341251880 | $76.43 | Shop at ECS Tuning | ||
Note
- arrêté = la pièce n'est plus produite.
