Jauge d'huile for BMW 1502-2002tii 1502 (1975)

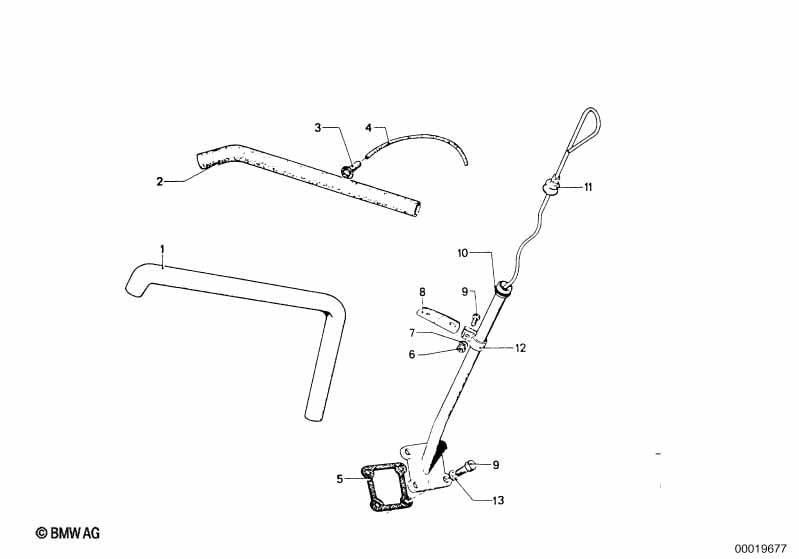

This Jauge d'huile technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1502. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Tuyau flexible de ventilation | 165MM MIT LOCH | 1 | 03/1966 | 07/1977 | 11151252407 | $7.27 | Shop at ECS Tuning | ||
| 03 | Raccord | 1 | 03/1966 | 07/1977 | 11151250902 | $1.05 | Shop at ECS Tuning | |||
| 04 | Tuyau de depression noir | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 06 | Ecrou à six pans | M6-8-ZNNIV SI | 1 | 02/1962 | 07/1977 | 07119905543 | $0.38 | Shop at ECS Tuning | ||
| 07 | Plaque d'appui | A6,4-200HV-ZNS3 | 1 | 02/1962 | 07/1977 | 07119903791 | $0.11 | Shop at ECS Tuning | ||
| Pour véhicules avec Version Japon et Version Suède |
L807A=Oui =Oui |
|||||||||
| 07 | Rondelle elastique | B6 | 1 | 01/1975 | 07/1977 | 07119932072 | $0.09 | arrêté | Shop at ECS Tuning | |
| 08 | Bride de fixation | 1 | 01/1975 | 07/1977 | 11431258218 | $0.83 | Shop at ECS Tuning | |||
| 11 | Jauge d'huile | GES.L=552 MM | 1 | 03/1971 | 07/1977 | 11431266740 | $14.41 | arrêté | Shop at ECS Tuning | |
| 12 | Collier | 1 | 03/1971 | 07/1977 | 11431258342 | $1.04 | Shop at ECS Tuning | |||
Note
- arrêté = la pièce n'est plus produite.
