Fixation de vilebrequin for BMW 2.5CS-3.0CSL 3.0CSi

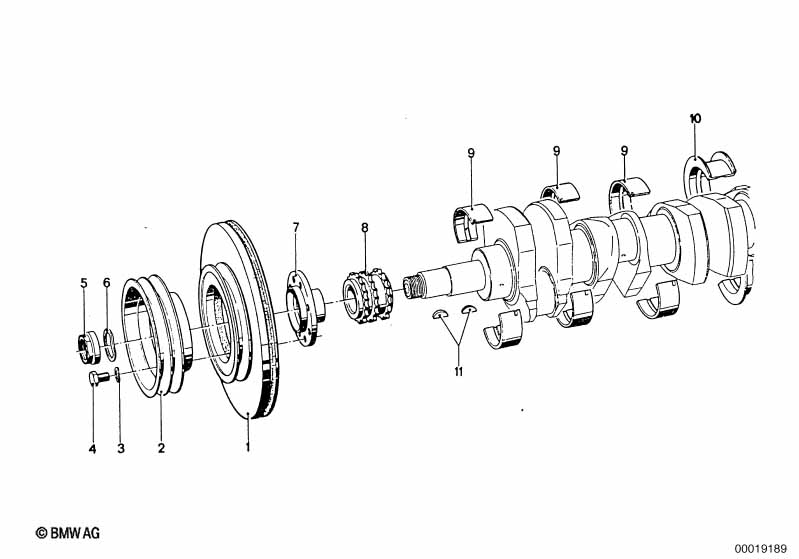

This Fixation de vilebrequin technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSi. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Amortisseur de vibrations | 1 | 04/1971 | 11/1975 | 11231263878 | arrêté | Shop at ECS Tuning | |||
| 02 | Poulie | 124MM | 1 | 04/1971 | 10/1973 | 11211258274 | $60.68 | Shop at ECS Tuning | ||
| 03 | Rondelle grower | B8 | 8 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 03 | Plaque d'appui | A8,4 | 8 | 04/1971 | 10/1973 | 24111690120 | $0.42 | Shop at ECS Tuning | ||
| 04 | Vis six pans | M8X12 | 8 | 07119902914 | $0.47 | Shop at ECS Tuning | ||||
| 04 | Vis six pans | M8X16-10.9-PHR | 8 | 04/1971 | 10/1973 | 07119913612 | $0.62 | Shop at ECS Tuning | ||
| 05 | Ecrou à collet | 1 | 11231308128 | $8.08 | Shop at ECS Tuning | |||||
| 06 | Jeu rondelle elastique 25 | B24 | 1 | 07509063160 | arrêté | Shop at ECS Tuning | ||||
| 07 | Moyeu | 1 | 11231250126 | $71.15 | arrêté | Shop at ECS Tuning | ||||
| 08 | Pignon à chaine | 1 | 11211252573 | $55.86 | Shop at ECS Tuning | |||||
| 09 | Coquille de coussinet rouge | 60,00MM | 12 | 11211261041 | $13.78 | Shop at ECS Tuning | ||||
| 09 | Coquille de coussinet bleu | 60,00MM | 12 | 11211261042 | $13.78 | Shop at ECS Tuning | ||||
| 09 | Coquille de coussinet rouge | 59,75MM(+0,25) | 12 | 11211261043 | $15.98 | Shop at ECS Tuning | ||||
| 09 | Coquille de coussinet bleu | 59,75MM(+0,25) | 12 | 11211261044 | $12.16 | arrêté | Shop at ECS Tuning | |||
| 09 | Coquille de coussinet rouge | 59,50MM(+0,50) | 12 | 11211261045 | $15.98 | Shop at ECS Tuning | ||||
| 09 | Coquille de coussinet bleu | 59,50MM(+0,50) | 12 | 11211261046 | $21.31 | Shop at ECS Tuning | ||||
| 09 | Coquille de coussinet rouge | 59,25MM(+0,75) | 12 | 11211261047 | $15.98 | arrêté | Shop at ECS Tuning | |||
| 09 | Coquille de coussinet bleu | 59,25MM(+0,75) | 12 | 11211261048 | $20.09 | Shop at ECS Tuning | ||||
| 10 | Coussinet de guidage rouge | 60,00MM | 2 | 11211261033 | $27.36 | Shop at ECS Tuning | ||||
| 10 | Coussinet de guidage rouge | 59,75MM(+0,25) | 2 | 11211261035 | $37.98 | Shop at ECS Tuning | ||||
| 10 | Coussinet de guidage rouge | 59,50MM(+0,50) | 2 | 11211261037 | $37.98 | Shop at ECS Tuning | ||||
| 11 | Rondelle ressort | 5X7,5 | 2 | 07119951485 | $0.47 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
