Vilebrequin / volant moteur for BMW 2.5CS-3.0CSL 3.0CSi

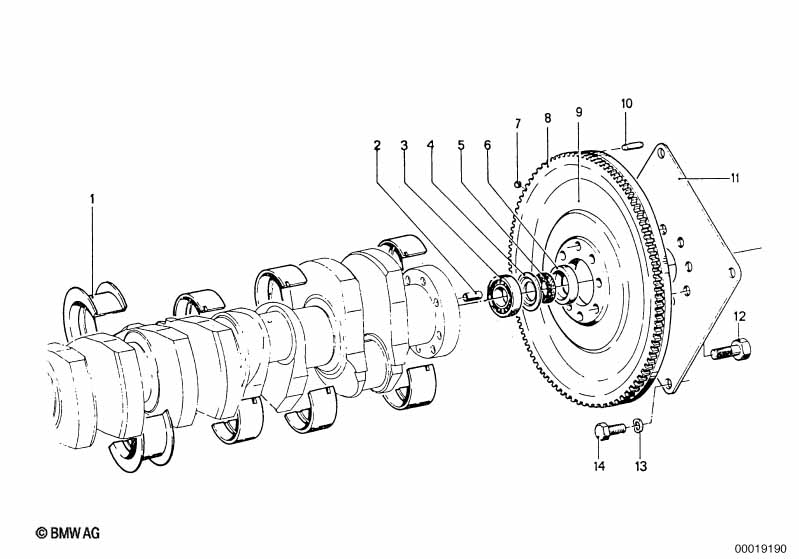

This Vilebrequin / volant moteur technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSi. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Coussinet de palier bleu | 60,00MM | 2 | 11211261034 | $27.36 | Shop at ECS Tuning | ||||
| 01 | Coussinet de palier bleu | 59,75MM(+0,25) | 2 | 11211261036 | $33.48 | Shop at ECS Tuning | ||||
| 01 | Coussinet de palier bleu | 59,50MM(+0,50) | 2 | 11211261038 | $37.98 | Shop at ECS Tuning | ||||
| 01 | Coussinet de guidage rouge | 59,25MM(+0,75) | 2 | 11211261039 | $28.47 | Shop at ECS Tuning | ||||
| 01 | Coussinet de palier bleu | 59,25MM(+0,75) | 2 | 11211261040 | $28.47 | arrêté | Shop at ECS Tuning | |||
| 02 | Douille d'ajustage | D=14,5MM | 1 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 03 | Roulement à rainure | 12X32X10 | 1 | 12/1968 | 11/1975 | 11211709681 | $17.67 | Shop at ECS Tuning | ||
| 03 | Roulement à rainure | 1 | 12/1968 | 11/1975 | 11211709934 | Shop at ECS Tuning | ||||
| 04 | Tôle de recouvrement | 1 | 12/1968 | 11/1975 | 11211744345 | $3.92 | Shop at ECS Tuning | |||
| 05 | Rondelle en feutre | 1 | 12/1968 | 11/1975 | 11211744601 | $0.87 | arrêté | Shop at ECS Tuning | ||
| 06 | Capuchon | 1 | 12/1968 | 11/1975 | 11211744342 | $1.18 | Shop at ECS Tuning | |||
| 07 | Bille | 4MM III | 1 | 12/1968 | 11/1975 | 07119986240 | $0.25 | Shop at ECS Tuning | ||
| 08 | Couronne dentee | 262MM | 1 | 12/1968 | 11/1975 | 11220616145 | arrêté | Shop at ECS Tuning | ||
| 09 | Volant moteur | D=240 X 27 | 1 | 11221270286 | $394.03 | arrêté | Shop at ECS Tuning | |||
| 09 | Volant moteur | D=240 X 33 | 1 | 12/1968 | 11/1975 | 11221706577 | $543.38 | arrêté | Shop at ECS Tuning | |
| 10 | Goupille cylindrique | 3 | 12/1968 | 11/1975 | 11221744338 | $7.48 | Shop at ECS Tuning | |||
| 12 | Vis six pans | M12X1,5X28 | 8 | 12/1968 | 11/1975 | 11227805885 | $2.30 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
