Mécanisme d'embiellage - Bielle for BMW 2.5CS-3.0CSL 3.0CSi

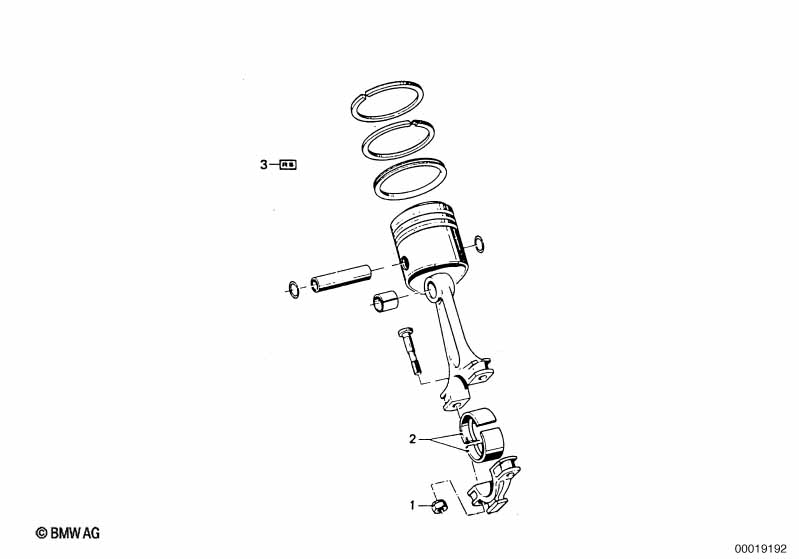

This Mécanisme d'embiellage - Bielle technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSi. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ecrou à six pans | M10X1 | 12 | 11240518321 | $1.52 | Shop at ECS Tuning | ||||
| 02 | Coquille de coussinet | 48,00MM | 12 | 11241258428 | $9.43 | arrêté | Shop at ECS Tuning | |||
| 02 | Coquille de coussinet rouge | 48,00MM(0) | 12 | 11241284550 | $10.85 | Shop at ECS Tuning | ||||
| 02 | Coquille de coussinet bleu | 48,00MM(0) | 12 | 11241284551 | $10.85 | Shop at ECS Tuning | ||||
| 02 | Coquille de coussinet rouge | 47,75MM(+0,25) | 12 | 11241284552 | $13.27 | Shop at ECS Tuning | ||||
| 02 | Coquille de coussinet rouge | 47,50MM(+0,50) | 12 | 11241284554 | $13.27 | Shop at ECS Tuning | ||||
| 02 | Coquille de coussinet rouge | 47,25MM(+0,75) | 12 | 11241284556 | $13.27 | Shop at ECS Tuning | ||||
| 03 | Jeu de reparation segments | 88,97MM("0") | 6 | 04/1971 | 11/1975 | 11251261130 | $73.75 | arrêté | Shop at ECS Tuning | |
| 03 | Jeu de reparation segments | 89,22MM(+0,25) | 6 | 04/1971 | 11/1975 | 11251261131 | $67.98 | Shop at ECS Tuning | ||
| 03 | Jeu de reparation segments | 89,47MM(+0,50) | 6 | 04/1971 | 11/1975 | 11251261132 | $67.98 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
