Alimentation d'huile-Filtre à huile for BMW 2.5CS-3.0CSL 3.0CSi

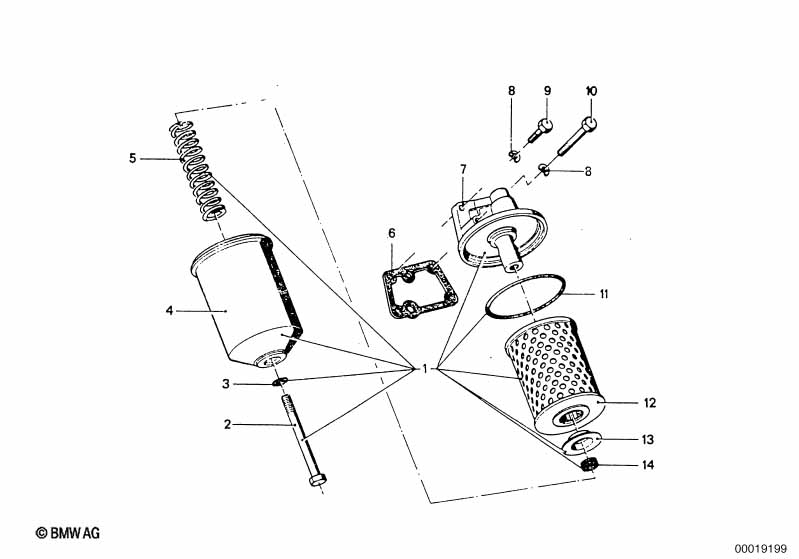

This Alimentation d'huile-Filtre à huile technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSi. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Filtre à huile | 1 | 11421254064 | arrêté | Shop at ECS Tuning | |||||
| 01 | Filtre à huile | 1 | 11421716583 | $175.14 | arrêté | Shop at ECS Tuning | ||||
| 01 | Filtre à huile | 1 | 11421716583 | $175.14 | arrêté | Shop at ECS Tuning | ||||
| uniquement en combinaison avec | ||||||||||
| -- | Vis six pans | M8X80 | 1 | 07119912558 | $2.89 | Shop at ECS Tuning | ||||
| -- | Vis six pans | M10X120-8.8-ZN | 1 | 07119912720 | $1.58 | Shop at ECS Tuning | ||||
| -- | Anneau d'étanchéité | A10X16-CU | 1 | 07119963106 | $0.10 | Shop at ECS Tuning | ||||
| 02 | Vis six pans | M12X120 | 1 | 07119912811 | arrêté | Shop at ECS Tuning | ||||
| 03 | Anneau d'étanchéité | A12X18-AL | 1 | 07119963155 | $0.29 | Shop at ECS Tuning | ||||
| 04 | Carter de filtre à huile | 1 | 11421252464 | $73.96 | arrêté | Shop at ECS Tuning | ||||
| 05 | Ressort de pression | 1 | 11421252467 | $0.95 | Shop at ECS Tuning | |||||
| 06 | Joint sans amiante | 1 | 11421730264 | $2.47 | Shop at ECS Tuning | |||||
| 07 | Tête de filtre à huile | 1 | 11421251966 | arrêté | Shop at ECS Tuning | |||||
| 07 | Filtre à huile | 1 | 11421716583 | $175.14 | arrêté | Shop at ECS Tuning | ||||
| uniquement en combinaison avec | ||||||||||
| -- | Vis six pans | M8X80 | 1 | 07119912558 | $2.89 | Shop at ECS Tuning | ||||
| -- | Vis six pans | M10X120-8.8-ZN | 1 | 07119912720 | $1.58 | Shop at ECS Tuning | ||||
| -- | Anneau d'étanchéité | A10X16-CU | 1 | 07119963106 | $0.10 | Shop at ECS Tuning | ||||
| 08 | Rondelle elastique | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 09 | Vis six pans | M8X30-ZN | 2 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 10 | Vis six pans | M8X60-ZNNIV SI | 2 | 07119905974 | Shop at ECS Tuning | |||||
| 11 | Joint torique | 102X4MM | 1 | 11421252222 | $5.56 | arrêté | Shop at ECS Tuning | |||
| 12 | Cartouche de filtre à huile | 1 | 11421256714 | Shop at ECS Tuning | ||||||
| 13 | Disque de pression | 1 | 11421252466 | $1.33 | Shop at ECS Tuning | |||||
| 14 | Anneau d'étanchéité | 1 | 11421252465 | $2.81 | arrêté | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
