Pompe a eau for BMW 2.5CS-3.0CSL 3.0CSi

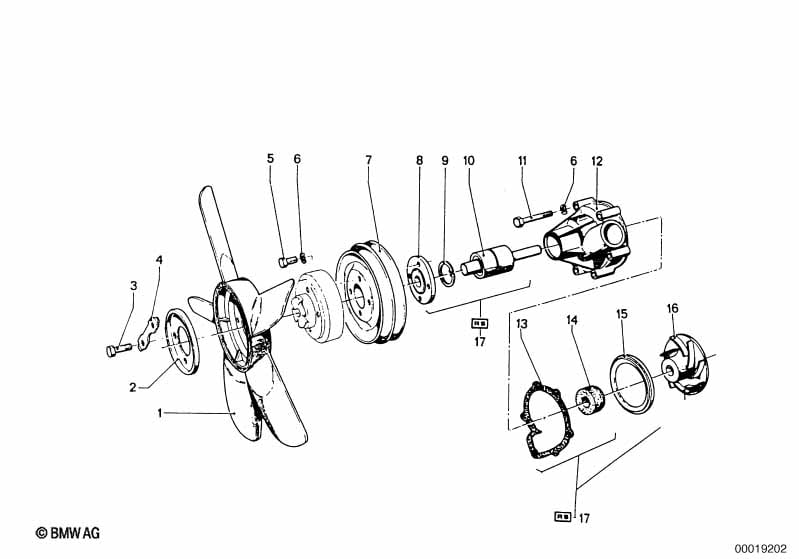

This Pompe a eau technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSi. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ventilateur | D=400MM | 1 | 12/1968 | 10/1973 | 11521252660 | $54.30 | arrêté | Shop at ECS Tuning | |
| 01 | Ventilateur | D=400MM | 1 | 10/1973 | 11/1975 | 11521259664 | $27.28 | arrêté | Shop at ECS Tuning | |
| 02 | Disque de pression | 1 | 11531251824 | $2.00 | arrêté | Shop at ECS Tuning | ||||
| 03 | Vis six pans | M6X25 | 4 | 07119913483 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Plaque de securite | 2 | 11531251825 | $0.83 | Shop at ECS Tuning | |||||
| 05 | Vis six pans | M6X12-8.8-ZNNIV | 4 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 06 | Rondelle elastique | B6 | 10 | 07119932072 | $0.09 | arrêté | Shop at ECS Tuning | |||
| 07 | Poulie | 1 | 04/1971 | 10/1973 | 11511255356 | $342.97 | Shop at ECS Tuning | |||
| 07 | Poulie | 1 | 10/1973 | 11/1975 | 11511251234 | $303.24 | arrêté | Shop at ECS Tuning | ||
| uniquement en combinaison avec | ||||||||||
| -- | Courroie | 12,5X1055 | 1 | 10/1973 | 11/1975 | 11231711090 | $11.16 | Shop at ECS Tuning | ||
| 08 | Moyeu | 1 | 11511251823 | arrêté | Shop at ECS Tuning | |||||
| 09 | Bague de securité | 30X1,2 | 1 | 07119934645 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Roulement de pompe a eau | 1 | 11511706729 | arrêté | Shop at ECS Tuning | |||||
| 11 | Vis six pans | M6X40 | 6 | 07119912310 | $0.43 | Shop at ECS Tuning | ||||
| 12 | Carter de pompe à eau | 1 | 11511251231 | arrêté | Shop at ECS Tuning | |||||
| 13 | Joint sans amiante | 1 | 11511250345 | $1.28 | arrêté | Shop at ECS Tuning | ||||
| 14 | Bague d'étanchéité | 1 | 11511274532 | $30.69 | arrêté | Shop at ECS Tuning | ||||
| 14 | Bague d'étanchéité | 1 | 11411741870 | $21.34 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Entretoise | 1 | 11511464902 | $9.88 | Shop at ECS Tuning | |||||
| 15 | Bague d'enjoliveur | 1 | 11511250339 | $21.60 | arrêté | Shop at ECS Tuning | ||||
| 16 | Roue d'ailes | 1 | 11511251138 | $21.99 | arrêté | Shop at ECS Tuning | ||||
| 17 | Kit de réparation de pompe à eau | 1 | 11511256545 | arrêté | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
