Dispositif d'admission - collecteur for BMW 2500-3.3Li 3.0Si (1975)

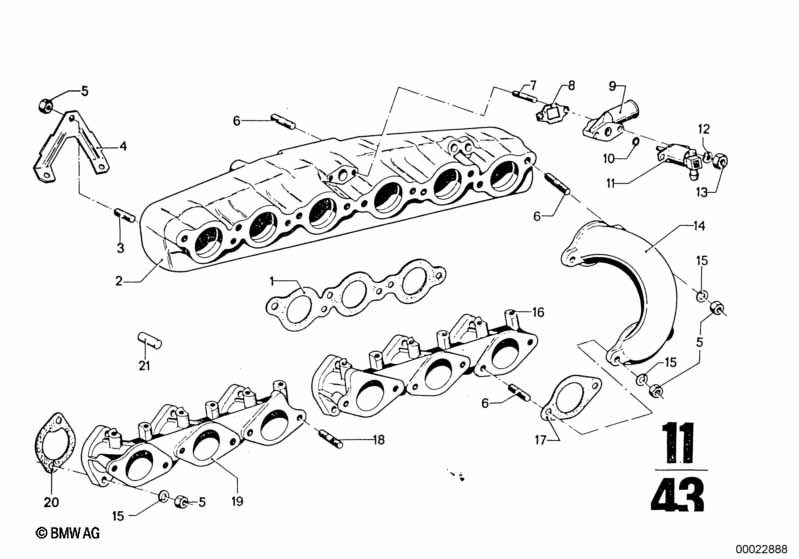

This Dispositif d'admission - collecteur technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Joint sans amiante | 2 | 11611730744 | $4.55 | Shop at ECS Tuning | |||||
| 03 | Tige filetée | 2 | 09/1974 | 02/1977 | 11121254992 | $1.74 | arrêté | Shop at ECS Tuning | ||
| 04 | Support | 2 | 09/1974 | 02/1977 | 11611256448 | $1.75 | arrêté | Shop at ECS Tuning | ||
| 05 | Ecrou à six pans avec bride | M8 | 38 | 09/1974 | 02/1977 | 11611713432 | $0.43 | arrêté | Shop at ECS Tuning | |
| 06 | Tige filetée | M8X25 | 26 | 09/1974 | 02/1977 | 07129903327 | $4.60 | arrêté | Shop at ECS Tuning | |
| 07 | Tige filetée | M6X45 | 2 | 09/1974 | 02/1977 | 07129908105 | $0.82 | Shop at ECS Tuning | ||
| 08 | Joint sans amiante | 1 | 09/1974 | 02/1977 | 11611730741 | $0.85 | arrêté | Shop at ECS Tuning | ||
| 09 | Bride de raccordement | 1 | 09/1974 | 02/1977 | 11611259412 | $17.02 | arrêté | Shop at ECS Tuning | ||
| 10 | Joint torique | 6,3X2,4 | 1 | 07119903045 | $1.67 | Shop at ECS Tuning | ||||
| 11 | Soupape d.demarreur | 1 | 09/1974 | 02/1977 | 13641358917 | $106.30 | Shop at ECS Tuning | |||
| 12 | Rondelle elastique | B6 | 2 | 07119932072 | $0.09 | arrêté | Shop at ECS Tuning | |||
| 13 | Ecrou à six pans | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 14 | Tuyau d'aspiration | 3 | 11611256567 | $38.67 | arrêté | Shop at ECS Tuning | ||||
| 14 | Tuyau d'aspiration | 3 | 09/1974 | 07/1976 | 11611259117 | $28.83 | arrêté | Shop at ECS Tuning | ||
| 15 | Rondelle elastique | 8,4X15-ZNS3 | 29 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 16 | Raccord tuyau d'admission d'air | ZYL.4-6 | 1 | 11611256418 | $68.24 | Shop at ECS Tuning | ||||
| 17 | Joint sans amiante | 6 | 11611730742 | $3.80 | Shop at ECS Tuning | |||||
| 18 | Tige filetée | M8X28-ZN | 2 | 07119908368 | $0.54 | Shop at ECS Tuning | ||||
| 19 | Raccord tuyau d'admission d'air | ZYL.1-3 | 1 | 11611256415 | $75.96 | arrêté | Shop at ECS Tuning | |||
| 20 | Joint sans amiante | 6 | 11619065676 | $4.18 | Shop at ECS Tuning | |||||
| Pour véhicules avec Version Suède |
=Oui |
|||||||||
| 21 | Capuchon | D=3,5MM | 1 | 09/1971 | 02/1977 | 11611437560 | $3.39 | Shop at ECS Tuning | ||
Note
- arrêté = la pièce n'est plus produite.
