Commande à dépression for BMW 2500-3.3Li 2500

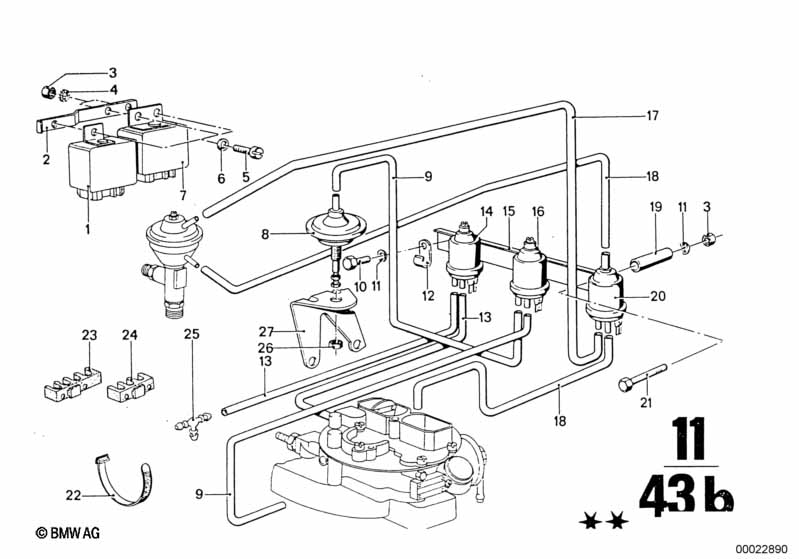

This Commande à dépression technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Relais interrupteur de regime moteur | 1 | 11641257241 | arrêté | Shop at ECS Tuning | |||||
| 02 | Support | 1 | 11641257249 | arrêté | Shop at ECS Tuning | |||||
| 03 | Ecrou à six pans | M5-8-ZNNIV SI | 4 | 07119905729 | Shop at ECS Tuning | |||||
| 04 | Rondelle dentee | A5,1 | 3 | 07119936107 | $0.18 | Shop at ECS Tuning | ||||
| 05 | Vis à tête bombée | M5X12-ZN | 3 | 07119907627 | $0.43 | Shop at ECS Tuning | ||||
| 06 | Rondelle | 10X5,3X1-200 HV | 3 | 07119904206 | Shop at ECS Tuning | |||||
| 06 | Plaque d'appui | 5.3-140 HV-ZNS | 3 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Interrupt.a comm.en fontion du regime | 1 | 11641252408 | $121.64 | arrêté | Shop at ECS Tuning | ||||
| 08 | Capsule de depression | 1 | 13211252253 | $89.60 | Shop at ECS Tuning | |||||
| 09 | Tuyau de depression blanc | 3,3X1,8 | X | 11747797177 | $17.14 | Shop at ECS Tuning | ||||
| 10 | Vis six pans | M5X10 | 1 | 07119913218 | $0.12 | Shop at ECS Tuning | ||||
| 11 | Rondelle elastique | B5 | 3 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Collier | 1 | 61131359184 | arrêté | Shop at ECS Tuning | |||||
| 13 | Tuyau de depression noir | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 14 | Soupape d.commutat.electr.noir | 1 | 11741265859 | $84.16 | arrêté | Shop at ECS Tuning | ||||
| 15 | Support | 1 | 11741259962 | arrêté | Shop at ECS Tuning | |||||
| 16 | Soupape d.commutat.electr.blanc | 1 | 11741265860 | $67.10 | arrêté | Shop at ECS Tuning | ||||
| 17 | Tuyau de depression bleu | 3,3X1,8 | X | 11747797082 | $17.14 | Shop at ECS Tuning | ||||
| 18 | Tuyau de depression rouge | 3,3X1,8 | X | 11747797050 | $17.32 | Shop at ECS Tuning | ||||
| 19 | Douille entretoise | 2 | 11741259966 | arrêté | Shop at ECS Tuning | |||||
| 20 | Soupape d.commutat.electr.rouge | 1 | 11741263520 | arrêté | Shop at ECS Tuning | |||||
| 21 | Vis six pans | M5X30-8.8-ZNS | 2 | 07119913925 | $1.74 | Shop at ECS Tuning | ||||
| 22 | Attache-câble | L=292MM/B=4,8MM | 2 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 23 | Agrafe | 1 | 11731259204 | arrêté | Shop at ECS Tuning | |||||
| 24 | Support | 2 | 12121353672 | $2.54 | Shop at ECS Tuning | |||||
| 25 | Pièce-T | 4 | 11731261489 | $0.56 | Shop at ECS Tuning | |||||
| 26 | Ecrou à six pans | M12X1 | 1 | 11512077715 | $0.58 | arrêté | Shop at ECS Tuning | |||
| 27 | Support | 1 | 13211261599 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
