Mécanisme d'embiellage - Bielle for BMW 7 Series E65 745d (2004)

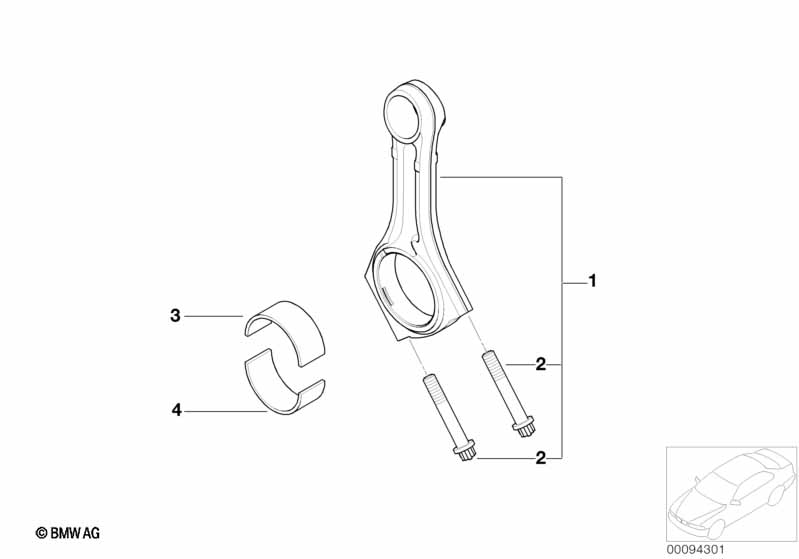

This Mécanisme d'embiellage - Bielle technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Jeu de bielles | 8 | 11240402973 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| Voir manuel de réparation Voir Service Information 11 04 01(744) |
||||||||||
| 02 | Vis de bielle microenrobée | M9X1,25X56 | 16 | 11247789381 | Shop at ECS Tuning | |||||
| Voir manuel de réparation Voir Service Information 11 04 01(744) |
||||||||||
| 03 | Coquille de coussinet bleu | 59,00MM(0) | 8 | 11247792767 | Shop at ECS Tuning | |||||
| 03 | Coquille de coussinet bleu | 58,75MM(+0,25) | 8 | 11247792855 | arrêté | Shop at ECS Tuning | ||||
| 03 | Coquille de coussinet bleu | 58,50MM(+0,50) | 8 | 11247792857 | arrêté | Shop at ECS Tuning | ||||
| 04 | Coquille de coussinet rouge | 59,00MM(0) | 8 | 11247792768 | Shop at ECS Tuning | |||||
| 04 | Coquille de coussinet rouge | 58,75MM(+0,25) | 8 | 11247792858 | arrêté | Shop at ECS Tuning | ||||
| 04 | Coquille de coussinet rouge | 58,50MM(+0,50) | 8 | 11247792860 | arrêté | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
