Mécanisme d'embiellage - Bielle for BMW 7 Series E23 728 (1979)

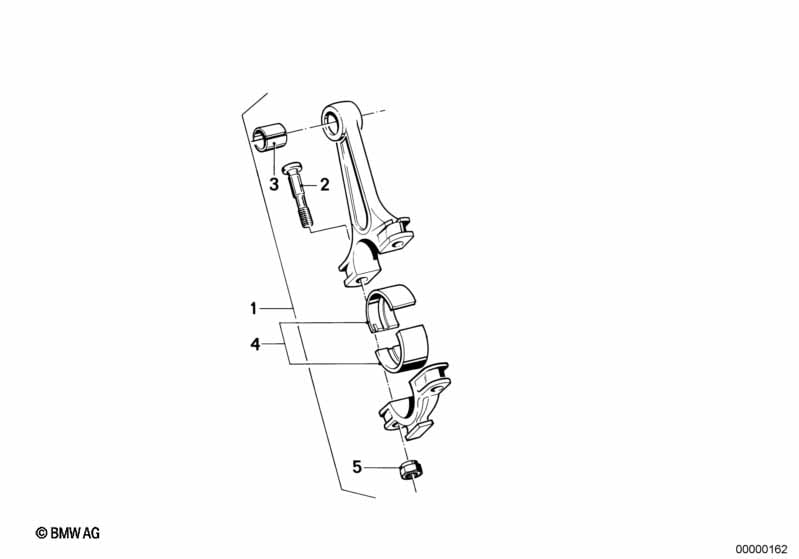

This Mécanisme d'embiellage - Bielle technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bielle | L=135MM | 6 | 11240618006 | $209.32 | Shop at ECS Tuning | ||||
| 02 | Vis de bielle | X | 11241719991 | $6.32 | Shop at ECS Tuning | |||||
| 03 | Bague de pied de bielle | 6 | 11240618100 | $2.47 | Shop at ECS Tuning | |||||
| 05 | Ecrou à six pans | M10X1 | X | 11240518321 | $1.52 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728 Mécanisme d'embiellage - Bielle?
- This technical diagram illustrates the Mécanisme d'embiellage - Bielle within the Moteur group for the 7 Series E23 728 produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Bielle (Part #11240618006).
- Which models use the hardware listed in this Mécanisme d'embiellage - Bielle?
- The hardware and components featured in the Mécanisme d'embiellage - Bielle are specific to the 7 Series E23 728 produced during 1979. These technical specifications ensure that parts like the Bielle (11240618006) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mécanisme d'embiellage - Bielle assembly?
- Each item in the Mécanisme d'embiellage - Bielle corresponds to the numbered list below the illustration. For the 7 Series E23 728, you can identify the Bielle by locating its position on the schematic, which then links to the official BMW part number 11240618006 for the Moteur section.
