Dispositif d'admission for BMW 3 Series E46 318Ci (2002)

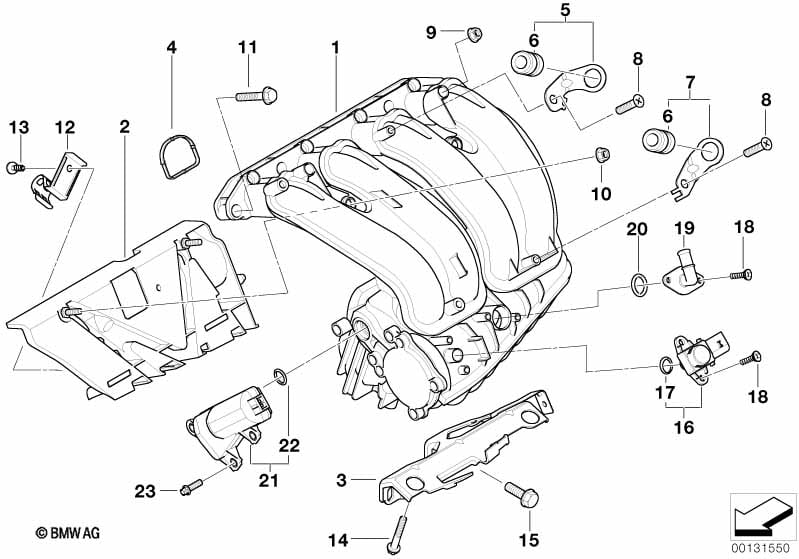

This Dispositif d'admission technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tubulure d'admission | 1 | 11617509950 | $615.48 | Shop at ECS Tuning | |||||
| 02 | Support | 1 | 11617500673 | +vieille matière | Shop at ECS Tuning | |||||
| 04 | Jeu joints de profil | 1 | 11617530703 | Shop at ECS Tuning | ||||||
| 05 | Support | 1 | 11617512375 | Shop at ECS Tuning | ||||||
| 06 | Manchon caoutchouc | 1 | 11127501588 | $1.07 | Shop at ECS Tuning | |||||
| 07 | Support | 1 | 11617512376 | Shop at ECS Tuning | ||||||
| 08 | Vis | K60X22 | 2 | 11617533331 | $0.75 | Shop at ECS Tuning | ||||
| 10 | Ecrou à six pans | 2 | 07129906887 | $0.56 | Shop at ECS Tuning | |||||
| 11 | Vis six pans avec rondelle | M7X50-U1 | 1 | 07119903918 | $0.89 | Shop at ECS Tuning | ||||
| 12 | Support | 1 | 11617503521 | Shop at ECS Tuning | ||||||
| 13 | Vis | K60X22 | 1 | 11617533331 | $0.75 | Shop at ECS Tuning | ||||
| 14 | Vis torx avec disque | M6X27 | 2 | 11617512372 | Shop at ECS Tuning | |||||
| 15 | Vis six pans avec rondelle | M8X25-8.8-ZNNIV | 2 | 07119905394 | $0.64 | Shop at ECS Tuning | ||||
| 16 | Capteur de pression différentielle | 1 | 13628657300 | Shop at ECS Tuning | ||||||
| 17 | Joint torique | 1 | 13627515272 | $2.48 | Shop at ECS Tuning | |||||
| 18 | Vis | K50X14 | 4 | 11617533330 | $1.07 | Shop at ECS Tuning | ||||
| 19 | Tubulure équerre | 1 | 07/2001 | 11617511384 | Shop at ECS Tuning | |||||
| 20 | Joint torique | 18X3,55 | 1 | 11617514883 | $1.81 | Shop at ECS Tuning | ||||
| 21 | Moteur de réglage | 1 | 11617511383 | $228.50 | Shop at ECS Tuning | |||||
| 22 | Joint torique | 18X3,55 | 1 | 11617514883 | $1.81 | Shop at ECS Tuning | ||||
| 23 | Vis torx avec disque | M6X18 | 3 | 05/2016 | 11611440384 | $1.12 | arrêté | Shop at ECS Tuning | ||
| 23 | Vis torx avec disque | M6X18 | 3 | 11617533344 | Shop at ECS Tuning |
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
- arrêté = la pièce n'est plus produite.
