Entraînement pompe à eau / Alternateur for BMW 7 Series E65 745d (2004)

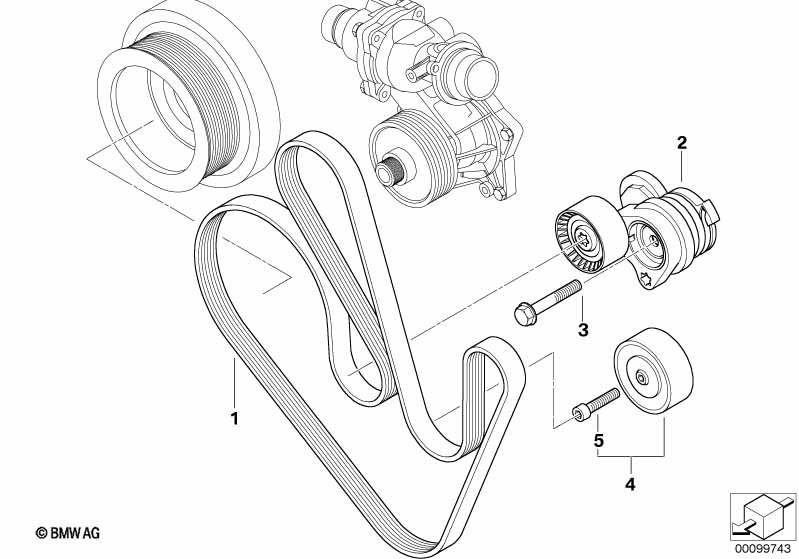

This Entraînement pompe à eau / Alternateur technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Courroie nervuree poly-v | 7PK X 1760 | 1 | 11287796396 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 02 | Tendeur de courroie | 1 | 11287806252 | Shop at ECS Tuning | ||||||
| 03 | Vis six-pans avec bride | M10X70-ZNS | 1 | 07119902697 | Shop at ECS Tuning | |||||
| 04 | Poulie de renvoi | D=70MM | 1 | 11287799464 | $46.81 | Shop at ECS Tuning | ||||
| 05 | Vis cylindrique | M8X35-10.9 | 1 | 07119905409 | $6.56 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745d Entraînement pompe à eau / Alternateur?
- This technical diagram illustrates the Entraînement pompe à eau / Alternateur within the Moteur group for the 7 Series E65 745d produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Courroie nervuree poly-v (Part #11287796396).
- Which models use the hardware listed in this Entraînement pompe à eau / Alternateur?
- The hardware and components featured in the Entraînement pompe à eau / Alternateur are specific to the 7 Series E65 745d produced during 2004. These technical specifications ensure that parts like the Courroie nervuree poly-v (11287796396) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Entraînement pompe à eau / Alternateur assembly?
- Each item in the Entraînement pompe à eau / Alternateur corresponds to the numbered list below the illustration. For the 7 Series E65 745d, you can identify the Courroie nervuree poly-v by locating its position on the schematic, which then links to the official BMW part number 11287796396 for the Moteur section.
