Syst.d'aspir.-tube d'air suralimente/AGR for BMW 7 Series E65 745d (2004)

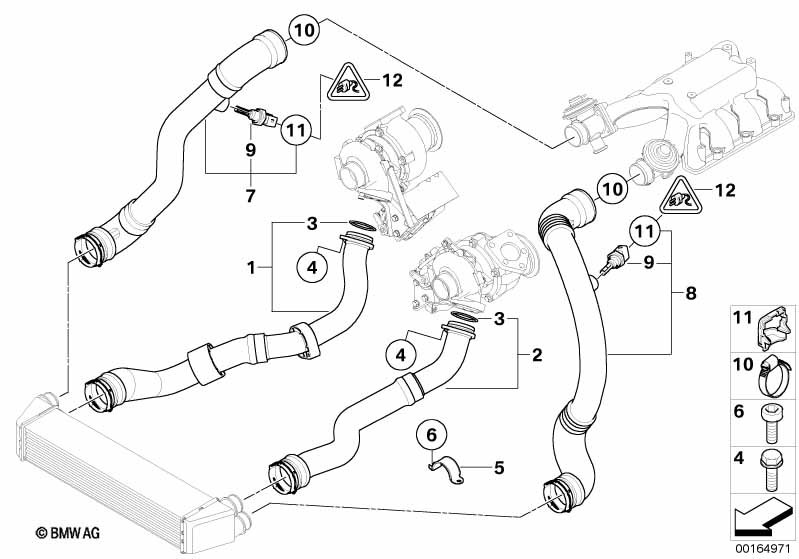

This Syst.d'aspir.-tube d'air suralimente/AGR technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Conduite d'air de suralimentation | ZYL. 1-4 | 1 | 11617792628 | +vieille matière | Shop at ECS Tuning | ||||
| 02 | Conduite d'air de suralimentation | ZYL. 5-8 | 1 | 11617792629 | +vieille matière | Shop at ECS Tuning | ||||
| 03 | Joint profilé | 2 | 11617789170 | Shop at ECS Tuning | ||||||
| 04 | Vis six pans avec rondelle | M6X18-U1 | 4 | 07119905399 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Support p tuyau d'air de suralimentation | 1 | 11617794471 | arrêté | Shop at ECS Tuning | |||||
| 06 | Vis cylindrique | M6X20-A4 70 | 1 | 07119905219 | $0.82 | Shop at ECS Tuning | ||||
| 07 | Conduite d'air de suralimentation | ZYL. 1-4 | 1 | 11617792630 | +vieille matière | Shop at ECS Tuning | ||||
| 08 | Conduite d'air de suralimentation | ZYL. 5-8 | 1 | 11617792631 | +vieille matière | Shop at ECS Tuning | ||||
| 09 | Sonde de température de l'air aspiré | 2 | 13627792203 | $25.98 | Shop at ECS Tuning | |||||
| 11 | Protection amovible | 1 | 11617807095 | $0.58 | Shop at ECS Tuning | |||||
| 12 | Boîtier de connecteur | 2 POL. | 1 | 12521732460 | $6.38 | Shop at ECS Tuning | ||||
| uniquement en combinaison avec | ||||||||||
| -- | Flachfederkontakt MDK4 2.8 ELA | 1-2,5 MM²/SN | 2 | 12521737773 | $0.32 | Shop at ECS Tuning | ||||
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
- arrêté = la pièce n'est plus produite.
