Carter d'huile for BMW 5 Series E60 523i (2007)

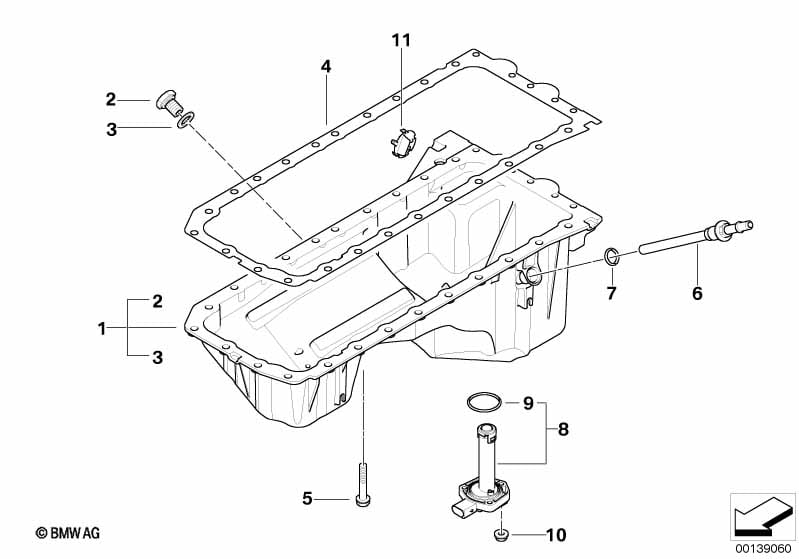

This Carter d'huile technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carter d'huile | 1 | 11137552414 | $551.84 | +vieille matière | Shop at ECS Tuning | ||||
| Nécessaire pour la réparation | ||||||||||
| -- | Joint liquide Loctite 5970 | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| Attention! Utiliser 1 seule fois les vis en aluminium. Autres informations: voir manuel de réparation! |
||||||||||
| 02 | Vis bouchon | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 03 | Anneau d'étanchéité | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 04 | Joint de profil | 1 | 11137548031 | $47.40 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Jeu de vis alu carter huile | 1 | 11132210959 | Shop at ECS Tuning | ||||||
| Attention! Utiliser 1 seule fois les vis en aluminium. Autres informations: voir manuel de réparation! |
||||||||||
| Attention! Utiliser 1 seule fois les vis en aluminium. Autres informations: voir manuel de réparation! |
||||||||||
| 05 | Jeu de vis alu carter huile | 1 | 11132210959 | Shop at ECS Tuning | ||||||
| 06 | Tuyau de retour d´huile | 1 | 11437527133 | $10.46 | Shop at ECS Tuning | |||||
| 07 | Joint torique | 17X3 | 1 | 11427548322 | $2.42 | Shop at ECS Tuning | ||||
| 08 | Capteur de niveau d'huile | 1 | 12617607910 | Shop at ECS Tuning | ||||||
| 09 | Anneau d'étanchéité | 1 | 12611744292 | $6.42 | Shop at ECS Tuning | |||||
| 10 | Ecrou six pans avec plaque | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 11 | Capuchon de protection | 1 | 11137543122 | $2.17 | Shop at ECS Tuning | |||||
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
