Carter-moteur for BMW 7 Series E65 745d (2004)

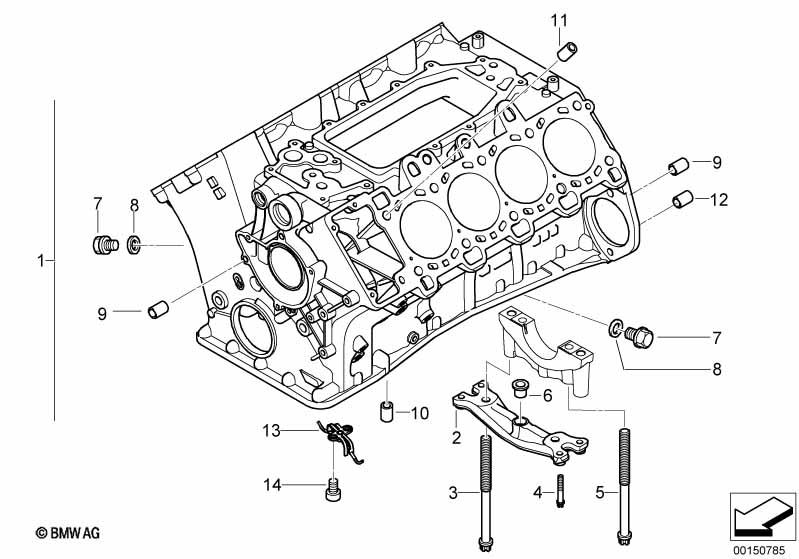

This Carter-moteur technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bloc-moteur avec pistons | 1 | 11110401053 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| Nécessaire pour la réparation | ||||||||||
| -- | Primer Loctite 171000 | 4ML | 1 | 83197515683 | $11.90 | Shop at ECS Tuning | ||||
| 02 | Traverse | 3 | 11117792807 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 03 | Vis Torx | M11X112-12.9 | 6 | 11117799509 | arrêté | Shop at ECS Tuning | ||||
| 04 | Vis Torx | M8X50-6.8-PHR | 15 | 11117794317 | arrêté | Shop at ECS Tuning | ||||
| 05 | Vis Torx | M11X105-12.9 | 14 | 11117792806 | arrêté | Shop at ECS Tuning | ||||
| 06 | Entretoise | 3 | 11111710132 | $5.27 | Shop at ECS Tuning | |||||
| 07 | Vis bouchon | M14X1,5-ZNNIV | 2 | 07119904539 | $2.56 | Shop at ECS Tuning | ||||
| 08 | Anneau d'étanchéité | A14X20-AL | 2 | 07119963225 | $0.11 | Shop at ECS Tuning | ||||
| 09 | Douille d'ajustage | D=8,5X9MM | 4 | 11121726242 | $1.07 | Shop at ECS Tuning | ||||
| 10 | Douille d'ajustage | D=10,5MM | 4 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 11 | Douille d'ajustage | D=14,5MM | 4 | 11112245180 | $1.65 | Shop at ECS Tuning | ||||
| 12 | Douille d'ajustage | D=14,5MM | 2 | 11117524470 | $1.65 | Shop at ECS Tuning | ||||
| 13 | Gicleur d'huile | 4 | 11427792786 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 14 | Vis Isa | M6X16 | 8 | 07129904963 | $0.82 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
