Pièces de bloc-moteur for BMW 7 Series E65 745d (2004)

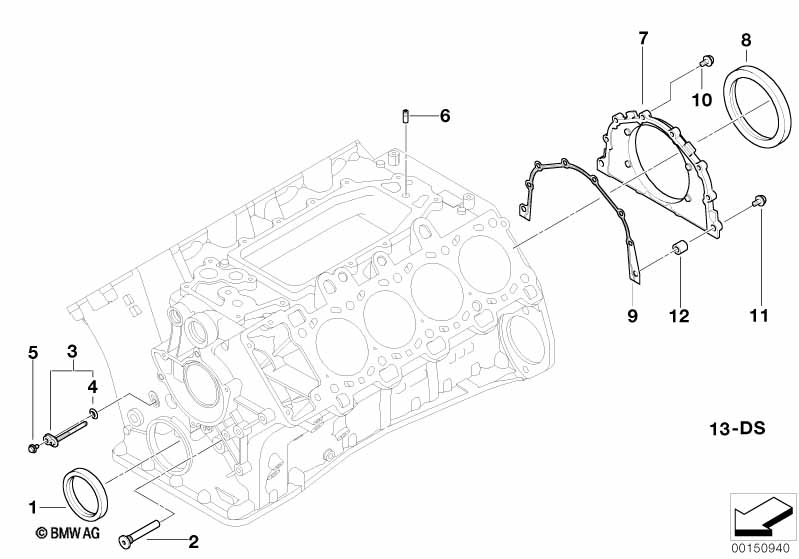

This Pièces de bloc-moteur technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Joint d'arbre | 65X79X10 | 1 | 11117785374 | Shop at ECS Tuning | |||||
| 02 | Boulon de palier | M12X1,25 | 3 | 11317792700 | Shop at ECS Tuning | |||||
| 03 | Gicleur d'huile | 2 | 11317792701 | Shop at ECS Tuning | ||||||
| 04 | Joint torique | 6X1,5MM | 2 | 11312248836 | Shop at ECS Tuning | |||||
| 05 | Vis six pans avec rondelle | M6X20 | 2 | 10/2006 | 07119904527 | $0.44 | Shop at ECS Tuning | |||
| 05 | Vis six pans avec rondelle | M6X20 | 2 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 06 | Valve de securite | 2 | 11112246886 | Shop at ECS Tuning | ||||||
| 07 | Capôt de protection | 1 | 11147792849 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 08 | Joint d'arbre | 125X100X12 | 1 | 11217838071 | $60.10 | Shop at ECS Tuning | ||||
| 09 | Joint metal | 1 | 11147792850 | Shop at ECS Tuning | ||||||
| 10 | Vis six pans avec rondelle | M6X25-ZNNIV SI | 6 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 11 | Vis six pans avec rondelle | M6X30-Z1 | 2 | 11147558183 | $0.62 | Shop at ECS Tuning | ||||
| 12 | Douille d'ajustage | D=8,5X9MM | 2 | 11121726242 | $1.07 | Shop at ECS Tuning | ||||
| 13 | Pochette joints carter mot. sans amiante | 1 | 11117798534 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
