Carter d'huile/indicateur niveau d'huile for BMW 7 Series E65 745d (2004)

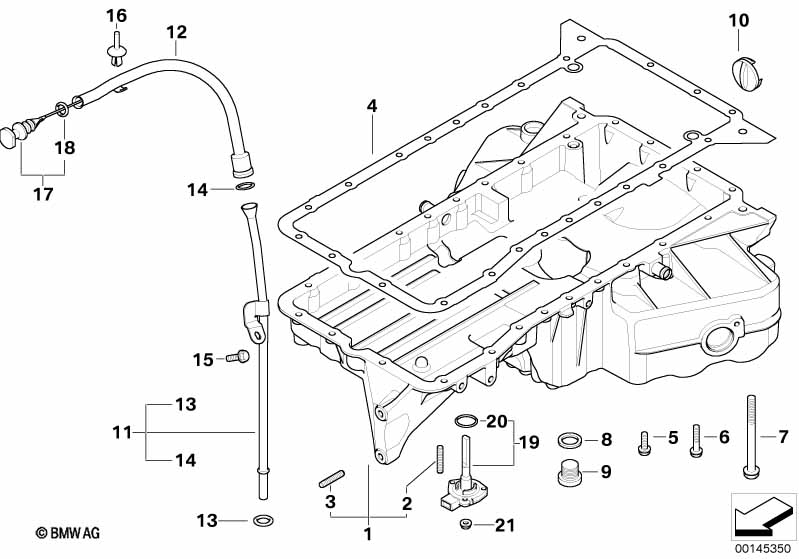

This Carter d'huile/indicateur niveau d'huile technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carter d'huile | 1 | 11137792441 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| Nécessaire pour la réparation | ||||||||||
| -- | Joint liquide Loctite 5970 | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| 02 | Tige filetée | M6X30-ZNNIV SI | 3 | 07129904544 | $1.42 | Shop at ECS Tuning | ||||
| 03 | Tige filetée | M8X45-8.8-ZNS3 | 2 | 07129903965 | $2.25 | Shop at ECS Tuning | ||||
| 04 | Joint metal | 1 | 11137798479 | Shop at ECS Tuning | ||||||
| Nécessaire pour la réparation | ||||||||||
| -- | Vis Torx | M8X30 | 21 | 11137800621 | $1.08 | arrêté | Shop at ECS Tuning | |||
| -- | Vis Torx | M8X80 | 2 | 11137800624 | Shop at ECS Tuning | |||||
| -- | Vis six pans avec rondelle | M6X22-U1ZNNIVSI | 4 | 07119905526 | $0.64 | Shop at ECS Tuning | ||||
| 05 | Vis six pans avec rondelle | M6X22-U1ZNNIVSI | 4 | 07119905526 | $0.64 | Shop at ECS Tuning | ||||
| 06 | Vis ASA | M8X30 | 21 | 11138592611 | Shop at ECS Tuning | |||||
| 07 | Vis Torx | M8X80 | 2 | 11137800624 | Shop at ECS Tuning | |||||
| 08 | Anneau d'étanchéité | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 09 | Vis bouchon | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 10 | Couvercle de fermeture | 1 | 11137789024 | arrêté | Shop at ECS Tuning | |||||
| 11 | Tuyau de guidage inférieur | 1 | 11437795623 | Shop at ECS Tuning | ||||||
| 12 | Tuyau de guidage supérieur | 1 | 11437795746 | Shop at ECS Tuning | ||||||
| 13 | Joint torique | 9,7X3 | 1 | 11437791820 | Shop at ECS Tuning | |||||
| 14 | Joint torique | 14,5X3 | 1 | 11431287541 | $1.19 | Shop at ECS Tuning | ||||
| 15 | Vis six pans avec rondelle | M6X14-U1-8.8 | 1 | 07119905525 | $0.47 | Shop at ECS Tuning | ||||
| 16 | Rivet | 1 | 51161881149 | $0.20 | Shop at ECS Tuning | |||||
| 17 | Jauge d'huile | 1 | 11437798787 | Shop at ECS Tuning | ||||||
| 18 | Joint torique | 9X2,2 | 2 | 11431717666 | $0.73 | Shop at ECS Tuning | ||||
| Avant de remplacer le capteur de niveau d'huile, respectez impérativement le mode d'action PuMA 29604954 ! |
||||||||||
| 19 | Capteur de niveau d'huile | 1 | 12617607910 | Shop at ECS Tuning | ||||||
| 20 | Anneau d'étanchéité | 1 | 12611744292 | $6.42 | Shop at ECS Tuning | |||||
| 21 | Ecrou à six pans | BM6-8-ZNNIV SI | 3 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
