Dispositif d'admission for BMW 7 Series E65 745d (2004)

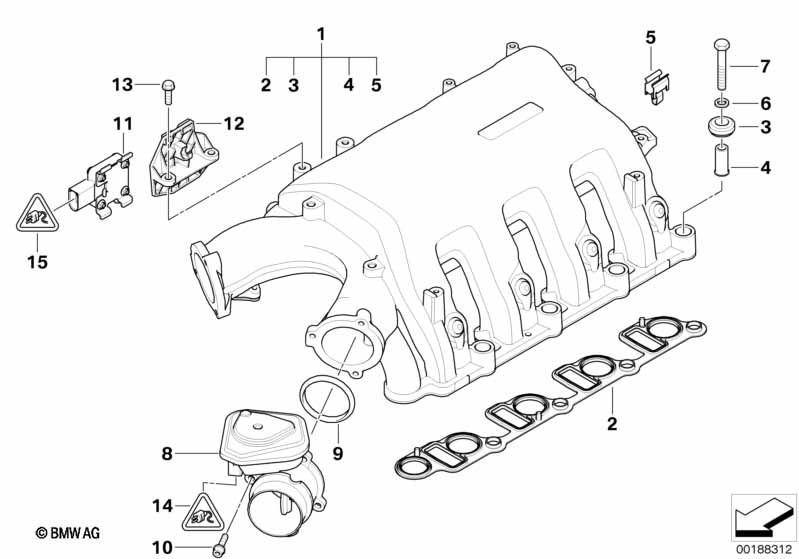

This Dispositif d'admission technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tubulure d'admission | 1 | 11617792504 | arrêté | Shop at ECS Tuning | |||||
| 02 | Jeu joints de profil | 1 | 11617792507 | Shop at ECS Tuning | ||||||
| 03 | Elément de découplage | 8 | 11617792509 | Shop at ECS Tuning | ||||||
| 04 | Douille | 8 | 11617792510 | arrêté | Shop at ECS Tuning | |||||
| 05 | Support de raccord a fiche | 1 | 07149157161 | $1.31 | Shop at ECS Tuning | |||||
| 06 | Plaque d'appui | 8,4X24X2-ZNS3 | 8 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Vis six pans | M8X50 | 8 | 07119904533 | $2.84 | Shop at ECS Tuning | ||||
| 08 | Papillon | 2 | 11717804384 | $407.13 | Shop at ECS Tuning | |||||
| 09 | Joint torique | 59X2,5 | 2 | 13547792098 | $2.48 | Shop at ECS Tuning | ||||
| 10 | Vis cylindrique | M6X20-Z1-8.8 | 6 | 07/2007 | 07119901731 | arrêté | Shop at ECS Tuning | |||
| 11 | Capteur de pression | 1 | 13627789219 | $163.45 | Shop at ECS Tuning | |||||
| 12 | Support de capteur | 1 | 13627795264 | arrêté | Shop at ECS Tuning | |||||
| 13 | Vis six pans avec rondelle | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 14 | Boîtier de connexion femelle | 1 | 12521438159 | $7.80 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Contact femelle SLK 2,8 ELA avec câble | 0,5- 1,0 MM²/AG | 4 | 12520143433 | $4.00 | Shop at ECS Tuning | ||||
| -- | Contact femelle SLK 2,8 ELA | 0,22-0,35MM² AG | 4 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
Note
- arrêté = la pièce n'est plus produite.
- SI = Service-Information (Information Service)
