Alimentation huile/Pompe huile+entrainem for BMW 7 Series E65 745d (2004)

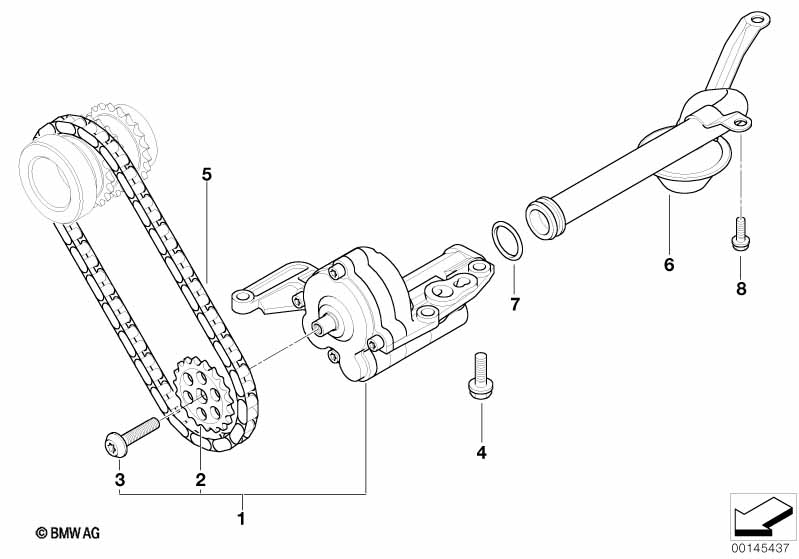

This Alimentation huile/Pompe huile+entrainem technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pompe à huile | 1 | 11417805816 | +vieille matière | Shop at ECS Tuning | |||||
| 02 | Pignon à chaîne de pompe à huile | 1 | 11412247304 | $15.00 | Shop at ECS Tuning | |||||
| 03 | Vis Torx | M8X35 | 1 | 11412248162 | $1.03 | Shop at ECS Tuning | ||||
| 04 | Vis Torx | M8X35-PHR | 3 | 11417794877 | arrêté | Shop at ECS Tuning | ||||
| 05 | Chaine | 1 | 11412249745 | $30.08 | Shop at ECS Tuning | |||||
| 06 | Tuyau d'admission | 1 | 11417792443 | arrêté | Shop at ECS Tuning | |||||
| 07 | Joint torique | 23.6X3.55 | 1 | 11411715298 | Shop at ECS Tuning | |||||
| 08 | Vis Torx | M8X50-6.8-PHR | 2 | 11117794317 | arrêté | Shop at ECS Tuning |
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
- arrêté = la pièce n'est plus produite.
