Distribution-arbre a cames/soupapes for BMW 7 Series E65 745d (2004)

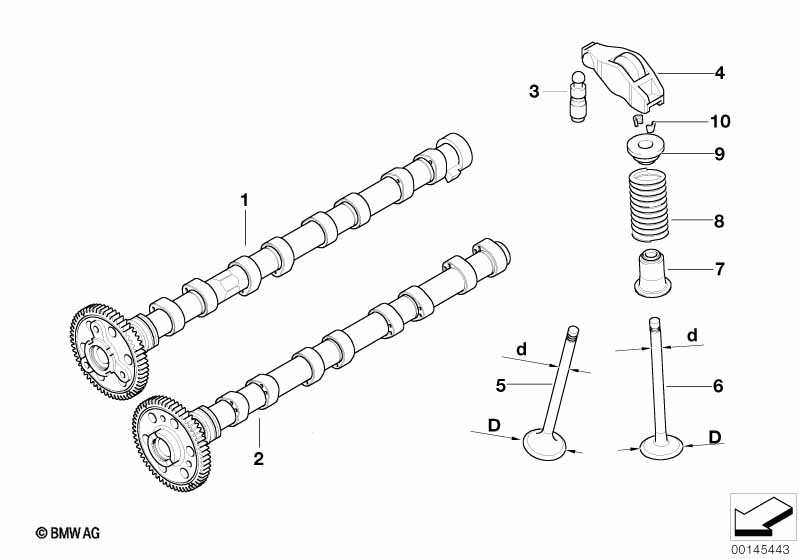

This Distribution-arbre a cames/soupapes technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Arbre a cames d'admission | ZYL.1-4 | 1 | 11317796538 | +vieille matière | Shop at ECS Tuning | ||||
| 01 | Arbre a cames d'admission | ZYL.5-8 | 1 | 11317796540 | +vieille matière | Shop at ECS Tuning | ||||
| 02 | Arbre à cames d'échappement | ZYL.1-4 | 1 | 11317796539 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 02 | Arbre à cames d'échappement | ZYL.5-8 | 1 | 11317796541 | +vieille matière | Shop at ECS Tuning | ||||
| 03 | Elément de compensation | 32 | 11332249817 | $21.42 | Shop at ECS Tuning | |||||
| 04 | Levier oscillant | 32 | 11332248878 | $33.04 | Shop at ECS Tuning | |||||
| 05 | Soupape d'admission | 29,0/5,92MM | 16 | 11347792712 | arrêté | Shop at ECS Tuning | ||||
| 06 | Soupape d'échappement | 27,4/5,92MM | 16 | 11347792713 | Shop at ECS Tuning | |||||
| 07 | Jeu de reparation joint de soupape | 2 | 11340029751 | $70.17 | Shop at ECS Tuning | |||||
| 08 | Ressort de soupape | 32 | 11347792714 | arrêté | Shop at ECS Tuning | |||||
| 09 | Plateau de ressort superieur | 32 | 11342246523 | $3.77 | Shop at ECS Tuning | |||||
| 10 | Demi segment d'arret | D=6 | 64 | 11341461405 | $1.34 | Shop at ECS Tuning |
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
- arrêté = la pièce n'est plus produite.
