Distribution - chaîne du haut for BMW 7 Series E65 745d (2004)

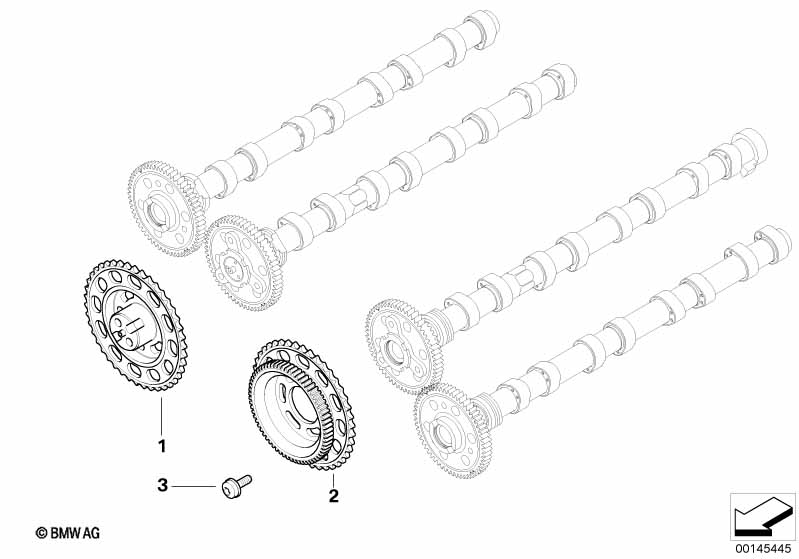

This Distribution - chaîne du haut technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pignon à chaîne de arbre à cames | ZYL. 1-4 | 1 | 11317793640 | +vieille matière | Shop at ECS Tuning | ||||
| 02 | Pignon à chaîne de arbre à cames | ZYL. 5-8 | 1 | 11317793641 | +vieille matière | Shop at ECS Tuning | ||||
| 03 | Vis Isa avec rondelle | M7X18 | 6 | 11317791821 | $1.03 | Shop at ECS Tuning |
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
