Cde soupapes-chaine distrib. partie inf. for BMW 7 Series E65 745d (2004)

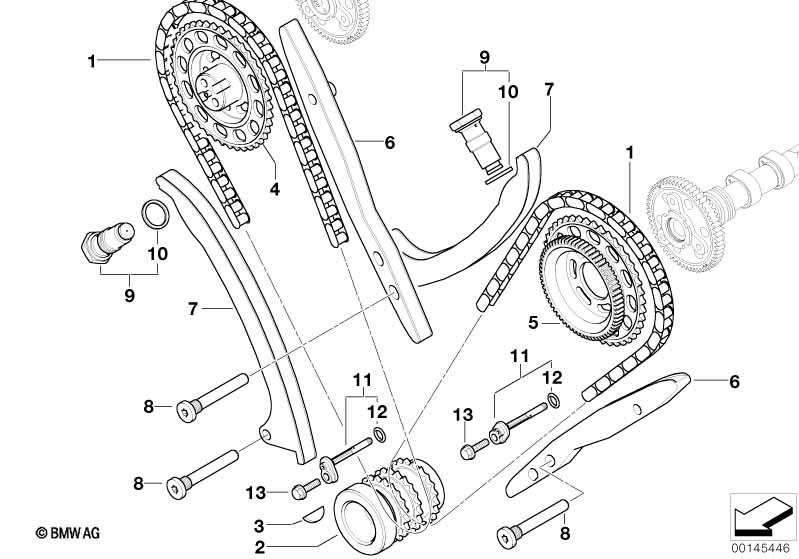

This Cde soupapes-chaine distrib. partie inf. technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Chaine de distribution | 1 | 11317789691 | +vieille matière | Shop at ECS Tuning | |||||
| 02 | Pignon à chaîne de vilebrequin | 1 | 11217793639 | +vieille matière | Shop at ECS Tuning | |||||
| 03 | Rondelle ressort | 5X6.5 | 1 | 07119951480 | $0.88 | Shop at ECS Tuning | ||||
| 04 | Pignon à chaîne de arbre à cames | ZYL. 1-4 | 1 | 11317793640 | +vieille matière | Shop at ECS Tuning | ||||
| 05 | Pignon à chaîne de arbre à cames | ZYL. 5-8 | 1 | 11317793641 | +vieille matière | Shop at ECS Tuning | ||||
| 06 | Rail de guidage | 2 | 11317792694 | Shop at ECS Tuning | ||||||
| 07 | Glissiere | 2 | 11317791723 | Shop at ECS Tuning | ||||||
| 08 | Boulon de palier | M12X1,25 | 5 | 11317792700 | Shop at ECS Tuning | |||||
| 09 | Tendeur de chaine | 2 | 11312248504 | Shop at ECS Tuning | ||||||
| 10 | Anneau d'étanchéité | A22X27-CU | 2 | 07119963354 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Gicleur d'huile | 2 | 11317792701 | Shop at ECS Tuning | ||||||
| 12 | Joint torique | 6X1,5MM | 2 | 11312248836 | Shop at ECS Tuning | |||||
| 13 | Vis six pans avec rondelle | M6X20 | 2 | 07119904527 | $0.44 | Shop at ECS Tuning |
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
