Culasse for BMW 7 Series E65 745d (2004)

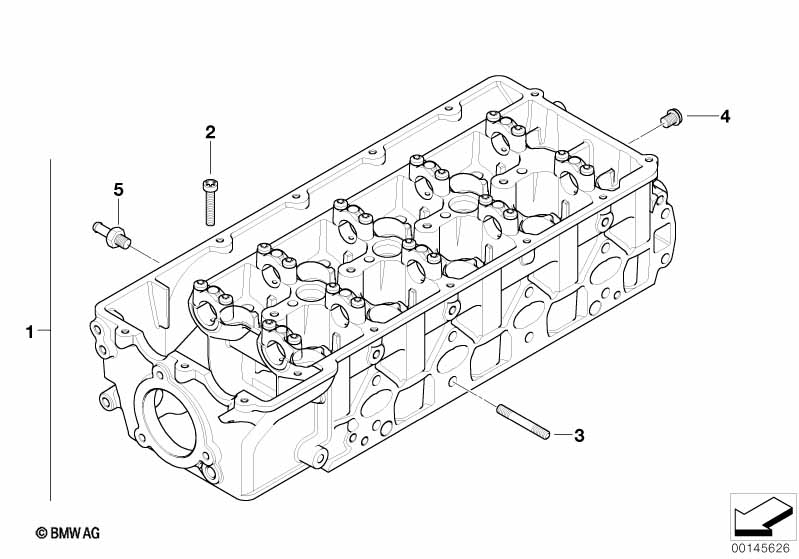

This Culasse technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Culasse | ZYL. 1-4 | 1 | 11127806048 | arrêté | Shop at ECS Tuning | ||||
| 01 | Culasse | ZYL. 5-8 | 1 | 11127806053 | arrêté | Shop at ECS Tuning | ||||
| 02 | Vis Torx | M6X30 | 40 | 11127806056 | $1.07 | Shop at ECS Tuning | ||||
| 03 | Tige filetée | M8X45 | 20 | 07129908136 | $0.29 | Shop at ECS Tuning | ||||
| 04 | Vis bouchon avec joint torique | M10X1 | 1 | 11127540072 | $2.60 | Shop at ECS Tuning | ||||
| 05 | Tubulure | M10X1 | 2 | 11127792716 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
