Pièces de culasse for BMW 7 Series E65 745d (2004)

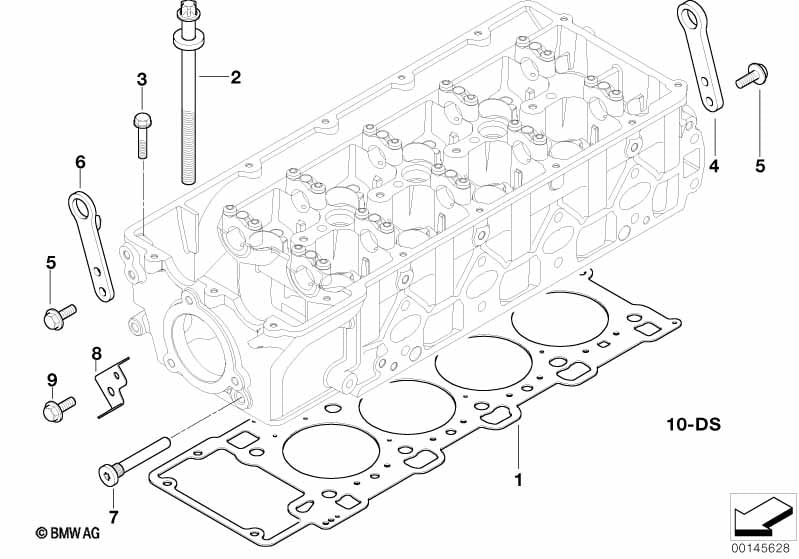

This Pièces de culasse technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| NE CONVENANT QU'AVEC CYLINDRES 1-4 | ||||||||||
| 01 | Joint de culasse sans amiante | 1-LOCH | 1 | 11127796526 | Shop at ECS Tuning | |||||
| 01 | Joint de culasse sans amiante | 2-LOCH | 1 | 11127796527 | Shop at ECS Tuning | |||||
| NE CONVENANT QU'AVEC CYLINDRES 5-8 | ||||||||||
| 01 | Joint de culasse sans amiante | 1-LOCH | 1 | 11127796528 | Shop at ECS Tuning | |||||
| 01 | Joint de culasse sans amiante | 2-LOCH | 1 | 11127796529 | Shop at ECS Tuning | |||||
| 02 | Jeu de vis de culasse | 2 | 11127798536 | Shop at ECS Tuning | ||||||
| 03 | Vis cylindrique avec rondelle | M6X35-ZNNIV SI | 6 | 07119906058 | Shop at ECS Tuning | |||||
| NE CONVENANT QU'AVEC CYLINDRES 1-4 | ||||||||||
| 04 | Anneau de suspension | 1 | 11122248787 | Shop at ECS Tuning | ||||||
| 05 | Vis six pans | M8X22-8.8-ZNS3 | 4 | 07119904040 | Shop at ECS Tuning | |||||
| NE CONVENANT QU'AVEC CYLINDRES 5-8 | ||||||||||
| 06 | Anneau de suspension | 1 | 11127794647 | arrêté | Shop at ECS Tuning | |||||
| 07 | Boulon de palier | M12X1,25 | 2 | 11317792700 | Shop at ECS Tuning | |||||
| 08 | Support | 1 | 22127792452 | arrêté | Shop at ECS Tuning | |||||
| 09 | Vis six pans avec rondelle | M8X18-Z1-ZNS3 | 1 | 07119902906 | $0.65 | Shop at ECS Tuning | ||||
| 10 | Pochette joints de culasse sans amiante | 1 | 11127798537 | arrêté | Shop at ECS Tuning | |||||
| Pochette de joints sans joint de culasse | ||||||||||
Note
- arrêté = la pièce n'est plus produite.
