Alimentat.d'huile-filtre, nid radiateur for BMW 7 Series E65 745d (2004)

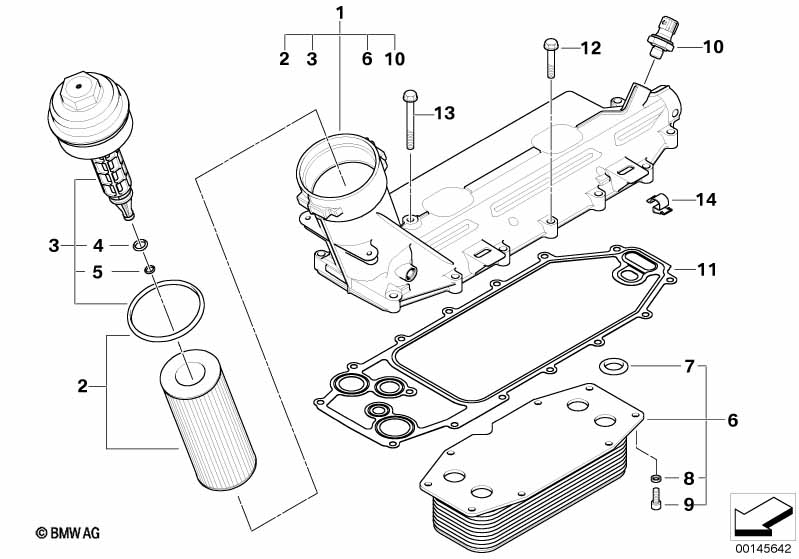

This Alimentat.d'huile-filtre, nid radiateur technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Unité de filtre à huile | 1 | 11427792444 | arrêté | Shop at ECS Tuning | |||||
| 02 | Kit cartouche de filtre à huile | 1 | 11427787697 | $19.08 | Shop at ECS Tuning | |||||
| 03 | Couvercle de filtre à huile | 1 | 11427787696 | Shop at ECS Tuning | ||||||
| 04 | Joint torique | 18,64X3,53 | 1 | 11420006836 | Shop at ECS Tuning | |||||
| 05 | Joint torique | 7X2,5 | 1 | 11427549573 | Shop at ECS Tuning | |||||
| 06 | Échang. therm. | 1 | 11427798484 | Shop at ECS Tuning | ||||||
| 07 | Anneau d'étanchéité | 4 | 11427785375 | Shop at ECS Tuning | ||||||
| 08 | Plaque d'appui | A6,4-ZNNIV SI | 8 | 07119904202 | Shop at ECS Tuning | |||||
| 09 | Vis Isa | M6X16-8.8-ZNNIV | 8 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 10 | Monocontact de pression d'huile | M12X1,5 | 1 | 12618611273 | Shop at ECS Tuning | |||||
| 11 | Joint metal | 1 | 11427792445 | Shop at ECS Tuning | ||||||
| 12 | Vis six pans avec rondelle | M6X30-ZNNIV SI | 14 | 07119906123 | $0.81 | Shop at ECS Tuning | ||||
| 13 | Vis six pans avec rondelle | M6X60-Z1 | 1 | 07119906124 | Shop at ECS Tuning | |||||
| 14 | Agrafe de fixation de câbles | 2 | 12/2024 | 11787549563 | $1.04 | Shop at ECS Tuning | ||||
| 14 | Clip | 15-19 | 2 | 07147568538 | $3.49 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
