Couvre culasse for BMW 7 Series E65 745d (2004)

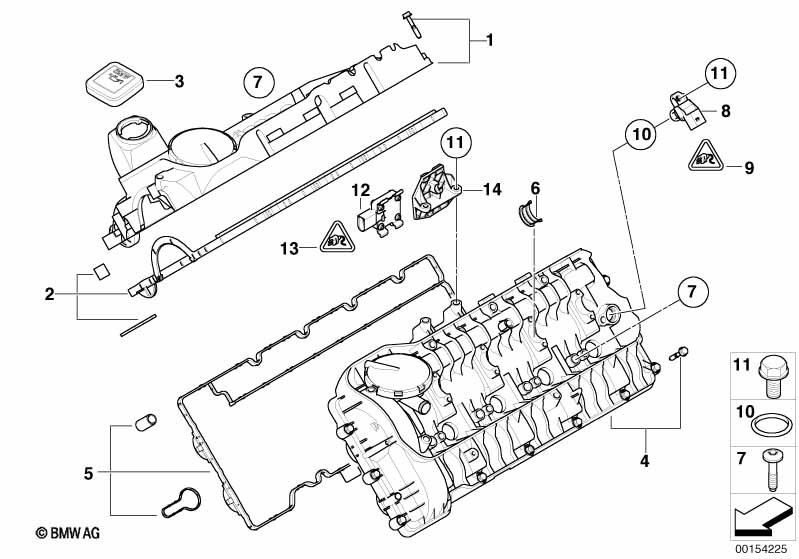

This Couvre culasse technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| NE CONVENANT QU'AVEC CYLINDRES 1-4 | ||||||||||
| 01 | Couvre culasse droit | 1 | 11127792420 | +vieille matière | Shop at ECS Tuning | |||||
| 02 | Jeu de joints, couvre culasse | ZYL. 1-4 | 1 | 11120403101 | Shop at ECS Tuning | |||||
| 03 | Bouchon de tubulure remplissage d'huile | 1 | 11127509328 | $7.78 | Shop at ECS Tuning | |||||
| NE CONVENANT QU'AVEC CYLINDRES 5-8 | ||||||||||
| 04 | Couvre culasse gauche | 1 | 11127792426 | Shop at ECS Tuning | ||||||
| 05 | Jeu de joints, couvre culasse | ZYL. 5-8 | 1 | 11120403102 | Shop at ECS Tuning | |||||
| 06 | Elément de découplage | 8 | 11127792432 | arrêté | Shop at ECS Tuning | |||||
| 07 | Vis Torx | M7X41 | 8 | 11122354108 | Shop at ECS Tuning | |||||
| 08 | Capteur d'arbre à cames | 1 | 13627792256 | $116.05 | Shop at ECS Tuning | |||||
| 09 | Boîtier prise de courant | 1 | 12527507257 | $2.53 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Contact femelle SLK 2,8 ELA | 0,22-0,35MM² AG | 3 | 12521427612 | $0.50 | SI 2 02 05(194) | Shop at ECS Tuning | |||
| -- | Isolation individuelle des conducteurs | 0,75-1,0MM² | 3 | 12521748973 | $0.13 | Shop at ECS Tuning | ||||
| 10 | Joint torique | 17X2,8 | 1 | 13627796699 | $1.88 | Shop at ECS Tuning | ||||
| 11 | Vis six pans avec rondelle | M6X16-U1-8.8 | 3 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Capteur de pression | 1 | 13627789219 | $163.45 | Shop at ECS Tuning | |||||
| 14 | Support de capteur | 1 | 13627795264 | arrêté | Shop at ECS Tuning | |||||
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
- arrêté = la pièce n'est plus produite.
- SI = Service-Information (Information Service)
