Carter-cylindres-Reniflard for BMW 7 Series E65 760i (2006)

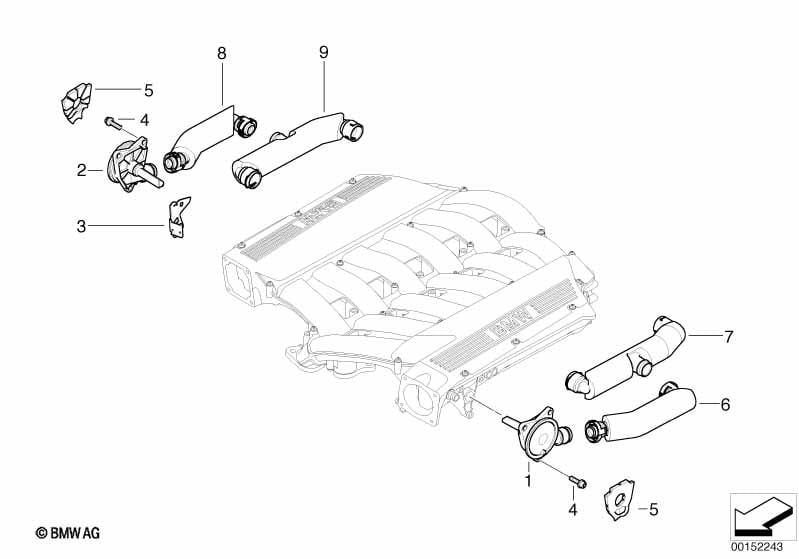

This Carter-cylindres-Reniflard technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 760i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Ne convenant qu'avec rangée de Cylindres, gauche |
||||||||||
| 01 | Soupape regulatrice de pression | 1 | 09/2006 | 11617549716 | $34.63 | Shop at ECS Tuning | ||||
| Ne convenant qu'avec rangée de Cylindres, droit |
||||||||||
| 02 | Soupape regulatrice de pression | 1 | 09/2006 | 11617549715 | $34.63 | Shop at ECS Tuning | ||||
| 03 | Appui droit | 1 | 09/2006 | 17127571931 | Shop at ECS Tuning | |||||
| 04 | Vis Torx | M6X20-U1 | 6 | 09/2006 | 11617573828 | $2.73 | Shop at ECS Tuning | |||
| 05 | Pièce amort. | 2 | 09/2006 | 11617527085 | $20.12 | Shop at ECS Tuning | ||||
| 06 | Tuyau flexible de ventilation gauche | 1 | 09/2006 | 11617549714 | $33.57 | Shop at ECS Tuning | ||||
| 07 | Conduite de mise à l'air de gauche | 1 | 09/2006 | 11617549711 | $55.65 | Shop at ECS Tuning | ||||
| 08 | Tuyau flexible de ventilation droit | 1 | 09/2006 | 11617549712 | $33.57 | Shop at ECS Tuning | ||||
| 09 | Conduite de mise à l'air de droite | 1 | 09/2006 | 11617549710 | $55.65 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 760i Carter-cylindres-Reniflard?
- This technical diagram illustrates the Carter-cylindres-Reniflard within the Moteur group for the 7 Series E65 760i produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Soupape regulatrice de pression (Part #11617549716).
- Which models use the hardware listed in this Carter-cylindres-Reniflard?
- The hardware and components featured in the Carter-cylindres-Reniflard are specific to the 7 Series E65 760i produced during 2006. These technical specifications ensure that parts like the Soupape regulatrice de pression (11617549716) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Carter-cylindres-Reniflard assembly?
- Each item in the Carter-cylindres-Reniflard corresponds to the numbered list below the illustration. For the 7 Series E65 760i, you can identify the Soupape regulatrice de pression by locating its position on the schematic, which then links to the official BMW part number 11617549716 for the Moteur section.
