Pièces de bloc-moteur for BMW 3 Series E30 325e (1988)

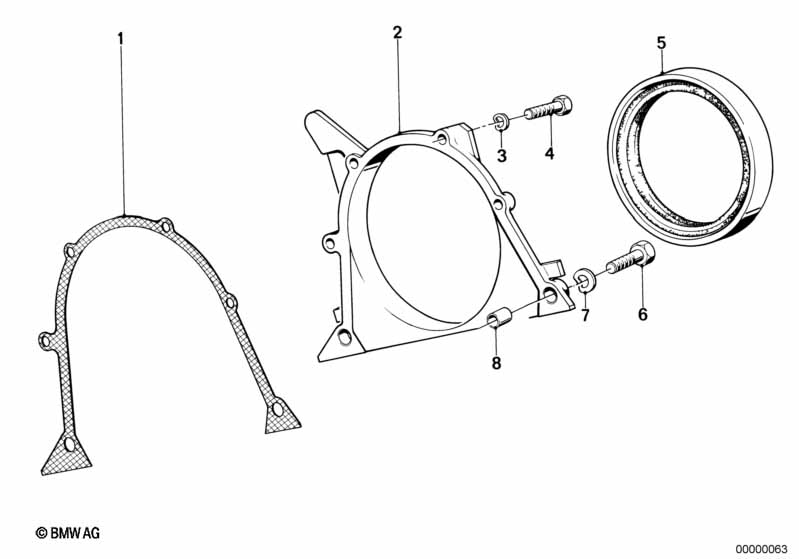

This Pièces de bloc-moteur technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Joint metal | 1 | 11141432240 | $3.10 | Shop at ECS Tuning | |||||
| 02 | Jeu de couvercles | 1 | 11141438715 | $69.66 | arrêté | Shop at ECS Tuning | ||||
| 02 | Jeu de couvercles | 1 | 11142247867 | $94.60 | arrêté | Shop at ECS Tuning | ||||
| 04 | Vis six pans | M6X25 | 4 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Joint d'arbre | 90X110X12 | 1 | 11142249533 | $58.96 | Shop at ECS Tuning | ||||
| 06 | Vis six pans | M8X25 | 2 | 07119913653 | $0.47 | Shop at ECS Tuning | ||||
| 07 | Rondelle elastique | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Douille d'ajustage | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
