Pièces de bloc-moteur for BMW 3 Series E30 325ix

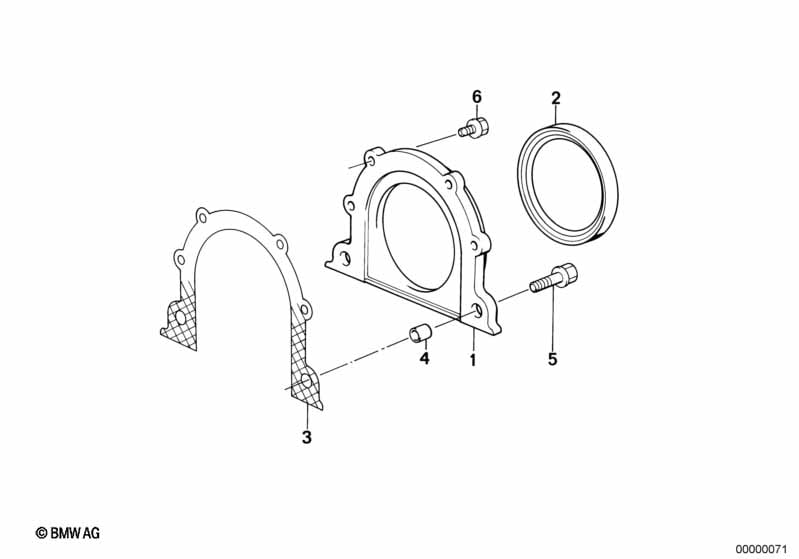

This Pièces de bloc-moteur technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Jeu de couvercles | 1 | 11141438715 | $69.66 | arrêté | Shop at ECS Tuning | ||||
| 01 | Jeu de couvercles | 1 | 11142247867 | $94.60 | arrêté | Shop at ECS Tuning | ||||
| 01 | Jeu de couvercles | 1 | 11142247867 | $94.60 | arrêté | Shop at ECS Tuning | ||||
| 02 | Joint d'arbre | 90X110X12 | 1 | 11142249533 | $58.96 | Shop at ECS Tuning | ||||
| 03 | Joint metal | 1 | 11141432240 | $3.10 | Shop at ECS Tuning | |||||
| 04 | Douille d'ajustage | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 05 | Vis six pans avec rondelle | M8X25-Z3 | 2 | 07119915082 | $0.62 | Shop at ECS Tuning | ||||
| 06 | Vis six pans avec rondelle | M6X25-ZNNIV SI | 4 | 07119905400 | $0.65 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
