Commande par courroie-damper for BMW 3 Series E30 318is (1990)

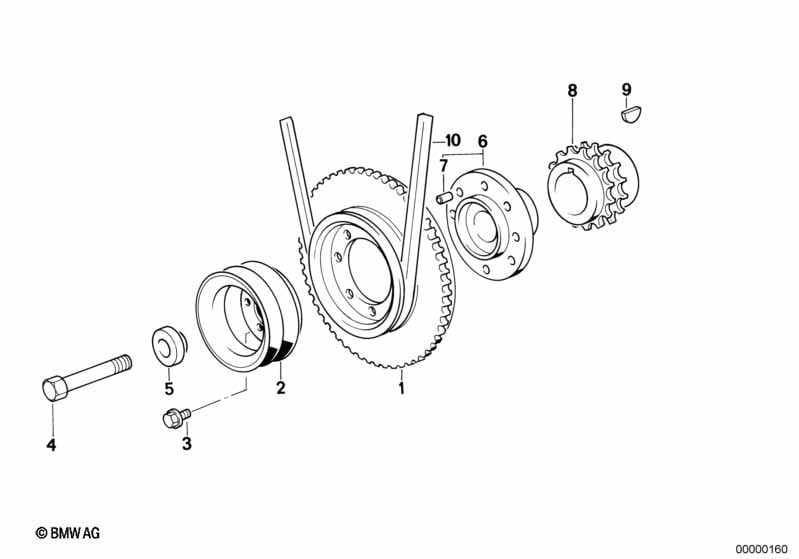

This Commande par courroie-damper technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Amortisseur de vibrations | 1 | 11231721169 | $785.09 | arrêté | Shop at ECS Tuning | ||||
| Pour véhicules avec Direction hydraulique et Climatiseur |
=Oui =Oui |
|||||||||
| 02 | Poulie | 1 | 11231721204 | $128.09 | arrêté | Shop at ECS Tuning | ||||
| 03 | Vis six pans avec rondelle | M8X16 | 6 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
| 04 | Vis six pans | M16X1,5X120 | 1 | 11211721100 | $8.20 | Shop at ECS Tuning | ||||
| 05 | Plaque d'appui | 1 | 11231709977 | $8.20 | Shop at ECS Tuning | |||||
| 06 | Moyeu | 1 | 11211721099 | $61.18 | Shop at ECS Tuning | |||||
| 07 | Goupille d'ajustage | 1 | 11231263911 | $0.92 | Shop at ECS Tuning | |||||
| 08 | Pignon à chaine | 1 | 11211247338 | $62.77 | Shop at ECS Tuning | |||||
| 09 | Rondelle ressort | 5X6.5 | 1 | 07119951480 | $0.88 | Shop at ECS Tuning | ||||
| 10 | Courroie | 10X1025 SRC | 1 | 11231721408 | $10.78 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
