Alimentation huile/Pompe huile+entrainem for BMW 3 Series E30 325ix

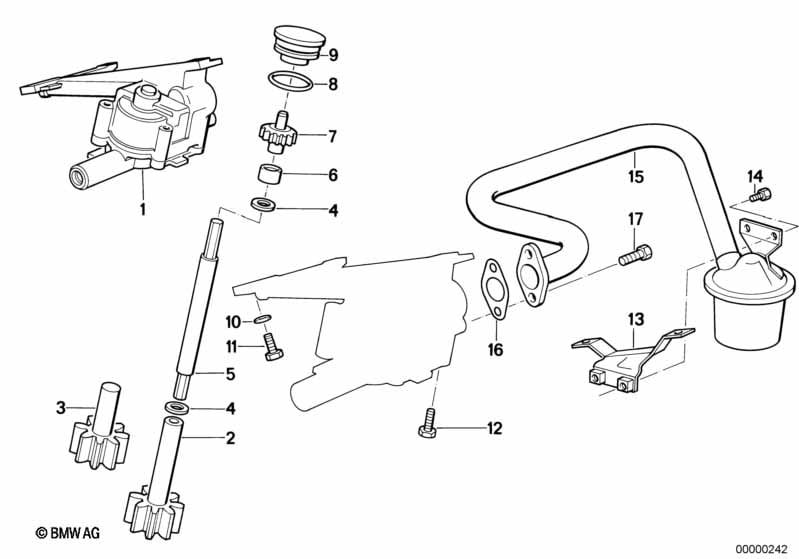

This Alimentation huile/Pompe huile+entrainem technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pompe à huile | 1 | 11411706805 | $284.55 | Shop at ECS Tuning | |||||
| 03 | Pignon | 1 | 11411280880 | $50.63 | Shop at ECS Tuning | |||||
| 04 | Butée | 2 | 11411280950 | $0.15 | Shop at ECS Tuning | |||||
| 05 | Raccord | 1 | 11411288576 | $25.53 | arrêté | Shop at ECS Tuning | ||||
| 06 | Douille à aiguilles | 1 | 11111265180 | Shop at ECS Tuning | ||||||
| 07 | Pignon | 1 | 11411713428 | $50.63 | Shop at ECS Tuning | |||||
| 08 | Anneau d'étanchéité | 1 | 12111363190 | $1.59 | arrêté | Shop at ECS Tuning | ||||
| 09 | Cache de palier | 1 | 11411276333 | $38.81 | arrêté | Shop at ECS Tuning | ||||
| 10 | Rondelle elastique | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 11 | Vis six pans | M6X22-8.8-ZNS3 | 1 | 07119904505 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Vis six pans | M8X25 | 3 | 07119913653 | $0.47 | Shop at ECS Tuning | ||||
| 12 | Vis six pans avec rondelle | M6X25-ZNNIV SI | 1 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 13 | Tole de fixation | 1 | 11411288572 | $13.95 | Shop at ECS Tuning | |||||
| 14 | Vis six pans avec rondelle | M6X10-Z1 | 2 | 07119915041 | $0.25 | Shop at ECS Tuning | ||||
| 15 | Tuyau d'aspiration | 1 | 11411706811 | $87.49 | Shop at ECS Tuning | |||||
| 16 | Joint sans amiante | 1 | 11411288565 | $1.06 | Shop at ECS Tuning | |||||
| 17 | Vis six pans avec rondelle | M6X16-U1-8.8 | 3 | 07119904524 | $0.25 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
