Alimentation d'huile-Filtre à huile for BMW 7 Series E32 730i (1989)

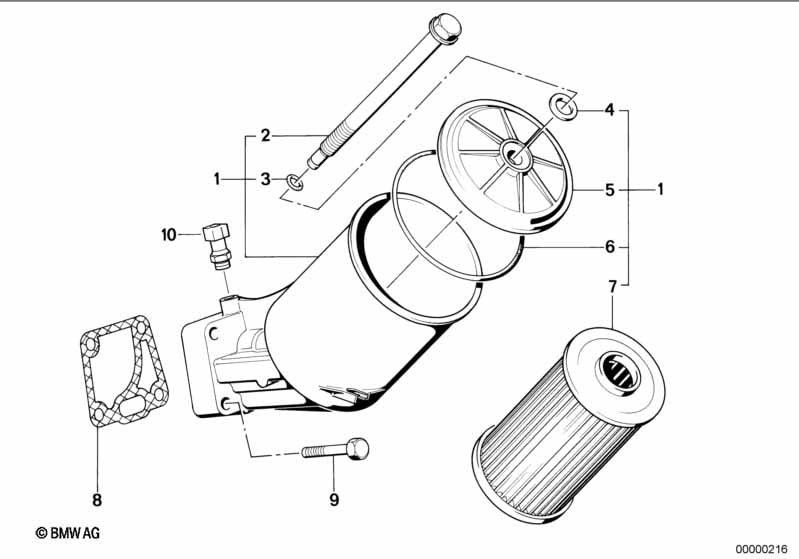

This Alimentation d'huile-Filtre à huile technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Filtre à huile + raccord radiateur | 1 | 11421708350 | arrêté | Shop at ECS Tuning | |||||
| 01 | Filtre à huile s/s raccord radiat. huile | 1 | 11/1987 | 11421720691 | arrêté | Shop at ECS Tuning | ||||
| Pour véhicules avec Boîte sport 5 vitesses |
=Oui |
|||||||||
| 01 | Filtre à huile + raccord radiateur | 1 | 11421708350 | arrêté | Shop at ECS Tuning | |||||
| 02 | Vis | 1 | 11421711074 | $10.07 | arrêté | Shop at ECS Tuning | ||||
| 03 | Joint torique | 4,5X1,5 | 1 | 11421711076 | $0.37 | Shop at ECS Tuning | ||||
| 04 | Anneau d'étanchéité | A10X14-AL | 1 | 07119963075 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Couvercle de filtre à huile | 1 | 11421711075 | $26.45 | Shop at ECS Tuning | |||||
| 06 | Joint torique | 91X4 | 1 | 11421741000 | $5.04 | Shop at ECS Tuning | ||||
| 07 | Kit cartouche de filtre à huile | 1 | 11429063138 | $12.25 | Shop at ECS Tuning | |||||
| 08 | Joint sans amiante | 1 | 11421722688 | $2.42 | Shop at ECS Tuning | |||||
| 09 | Vis six pans avec rondelle | M8X40-Z3 | 4 | 07119915088 | $0.41 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 730i Alimentation d'huile-Filtre à huile?
- This technical diagram illustrates the Alimentation d'huile-Filtre à huile within the Moteur group for the 7 Series E32 730i produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Filtre à huile + raccord radiateur (Part #11421708350).
- Which models use the hardware listed in this Alimentation d'huile-Filtre à huile?
- The hardware and components featured in the Alimentation d'huile-Filtre à huile are specific to the 7 Series E32 730i produced during 1989. These technical specifications ensure that parts like the Filtre à huile + raccord radiateur (11421708350) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Alimentation d'huile-Filtre à huile assembly?
- Each item in the Alimentation d'huile-Filtre à huile corresponds to the numbered list below the illustration. For the 7 Series E32 730i, you can identify the Filtre à huile + raccord radiateur by locating its position on the schematic, which then links to the official BMW part number 11421708350 for the Moteur section.
