Moteur for BMW 7 Series E32 730i (1989)

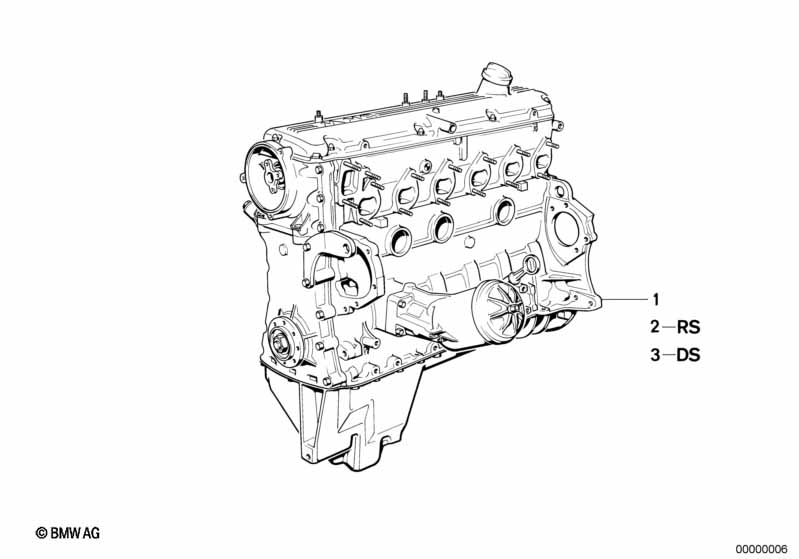

This Moteur technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pour véhicules avec Marquage de moteur 30 6E A |
=Oui |
|||||||||
| 01 | AT-Moteur | 306EA | 1 | 11/1987 | 11001730814 | arrêté | Shop at ECS Tuning | |||
| Pour véhicules avec Marquage de moteur 30 6K A |
=Oui |
|||||||||
| 01 | AT-Moteur | 306KA | 1 | 11/1987 | 11001730840 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| 01 | ES-Moteur (action speciale) | AF | 1 | 11/1987 | 11009069799 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| 02 | Necessaire de montage mecanisme moteur | 1 | 11009059197 | $76.04 | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
