Moteur for BMW 5 Series E34 525td

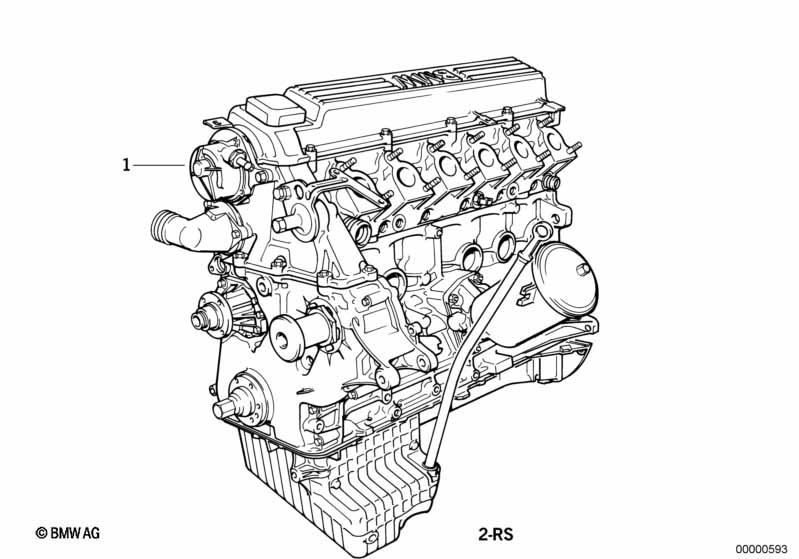

This Moteur technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | AT-Moteur | 256T1 | 1 | 09/1993 | 11009068615 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| uniquement en combinaison avec | ||||||||||
| -- | Collier p tuyau de retour de chauffage | 1 | 09/1993 | 11712244907 | arrêté | Shop at ECS Tuning | ||||
| -- | Support | 1 | 09/1993 | 11282245419 | +vieille matière | Shop at ECS Tuning | ||||
| -- | Vis six pans avec rondelle | M6X18-U1 | 1 | 09/1993 | 07119905399 | $0.36 | Shop at ECS Tuning | |||
| 01 | AT-Moteur | 256T1 | 1 | 09/1993 | 11009068615 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| uniquement en combinaison avec | ||||||||||
| -- | Collier p tuyau de retour de chauffage | 1 | 09/1993 | 11712244907 | arrêté | Shop at ECS Tuning | ||||
| -- | Vis six pans avec rondelle | M6X18-U1 | 1 | 09/1993 | 07119905399 | $0.36 | Shop at ECS Tuning | |||
| 01 | ES-Moteur (action speciale) | 256T1 | 1 | 09/1993 | 11000030373 | arrêté | Shop at ECS Tuning | |||
| 01 | ES-Moteur (action speciale) | 256T1 | 1 | 09/1993 | 11000030375 | arrêté | Shop at ECS Tuning | |||
| 02 | Necessaire de montage mecanisme moteur | 1 | 11009070054 | arrêté | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Joint avec pare chaleur sans amiante | 1 | 11622247024 | $27.16 | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
