Carter-moteur for BMW 3 Series E36 M3 (1995)

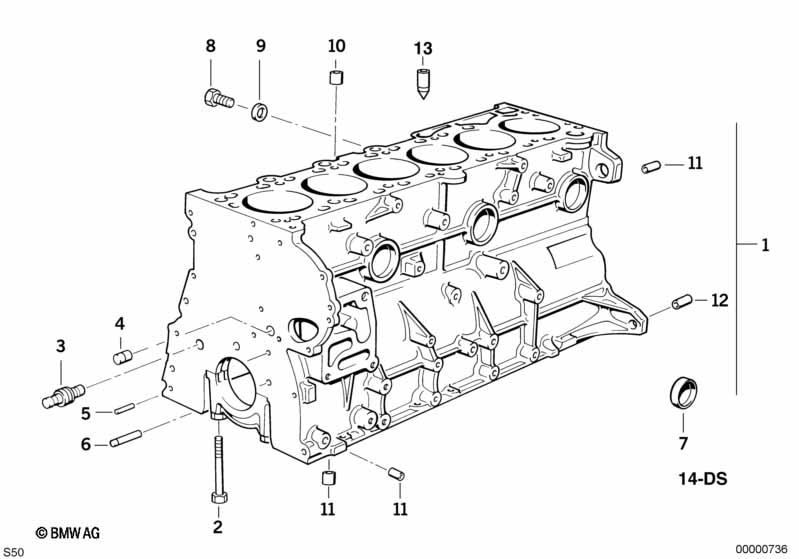

This Carter-moteur technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carter-cylindres sans pistons | S50B30 | 1 | 11111317269 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 01 | Carter-cylindres sans pistons | S50B30 86,00MM | 1 | 11111317274 | Shop at ECS Tuning | |||||
| 02 | Vis six pans | M10X80 | X | 11112244286 | $1.03 | Shop at ECS Tuning | ||||
| 03 | Boulon de palier | 1 | 11111317548 | $30.13 | Shop at ECS Tuning | |||||
| 04 | Bouchon | D=12,0MM | 4 | 11111268539 | $0.58 | Shop at ECS Tuning | ||||
| 05 | Goupille cylindrique | 6X32 | 1 | 07119942169 | $0.21 | arrêté | Shop at ECS Tuning | |||
| 06 | Boulon de palier | 1 | 11111706500 | $4.12 | Shop at ECS Tuning | |||||
| 07 | Couvercle de fermeture | D=45MM | 7 | 11111714712 | $3.32 | Shop at ECS Tuning | ||||
| 08 | Vis bouchon | AM14X1,5 | 1 | 07119909704 | Shop at ECS Tuning | |||||
| 09 | Anneau d'étanchéité | A14X18-AL | 1 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Douille d'ajustage | D=13,5MM | 2 | 11121726243 | $1.62 | Shop at ECS Tuning | ||||
| 11 | Douille d'ajustage | D=10,5MM | 6 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 12 | Douille d'ajustage | D=14,5MM | 2 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| 13 | Buse | 1 | 11111403958 | $6.21 | Shop at ECS Tuning | |||||
| 14 | Pochette joints carter mot. sans amiante | 1 | 11111402381 | $223.72 | Shop at ECS Tuning | |||||
| NE CONVENANT QU'AVEC SERIE INDIVIDUELLE 95 GT INTERNATIONALE |
||||||||||
| 14 | Pochette joints carter mot. sans amiante | 1 | 11111402381 | $223.72 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Joint torique | D=90MM/3MM | 1 | 33111214144 | $2.16 | Shop at ECS Tuning | ||||
| -- | Anneau d'étanchéité | 40X4 | 1 | 12611277129 | $2.09 | Shop at ECS Tuning | ||||
| -- | Joint torique | 20X2,5 | 1 | 11411404635 | $2.38 | Shop at ECS Tuning | ||||
| -- | Joint torique | 1 | 07119906988 | NoS | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
- NoS = No Stock (Pièce pas en stock dans magasin central)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 M3 Carter-moteur?
- This technical diagram illustrates the Carter-moteur within the Moteur group for the 3 Series E36 M3 produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Carter-cylindres sans pistons (Part #11111317269).
- Which models use the hardware listed in this Carter-moteur?
- The hardware and components featured in the Carter-moteur are specific to the 3 Series E36 M3 produced during 1995. These technical specifications ensure that parts like the Carter-cylindres sans pistons (11111317269) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Carter-moteur assembly?
- Each item in the Carter-moteur corresponds to the numbered list below the illustration. For the 3 Series E36 M3, you can identify the Carter-cylindres sans pistons by locating its position on the schematic, which then links to the official BMW part number 11111317269 for the Moteur section.
