Cde soupapes-arbre a cames/graissage for BMW 3 Series E36 M3 (1994)

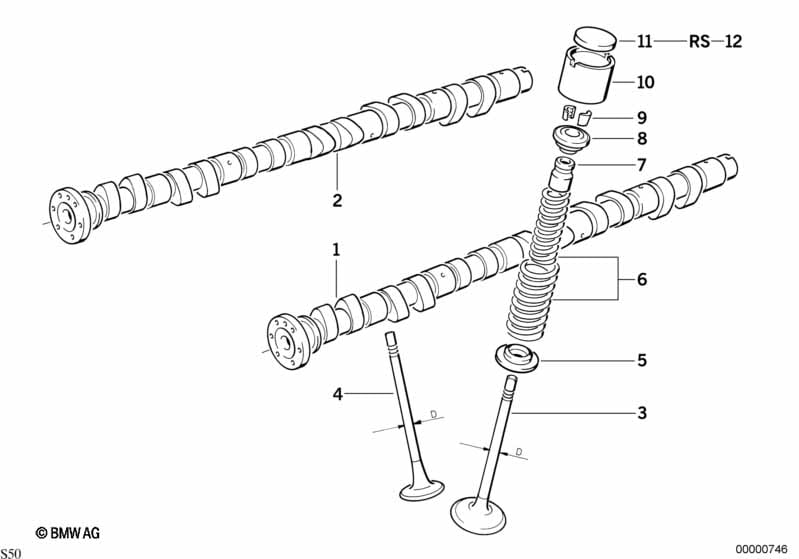

This Cde soupapes-arbre a cames/graissage technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Arbre a cames d'admission | 260/1 | 1 | 11311402193 | $920.70 | Shop at ECS Tuning | ||||
| NE CONVENANT QU'AVEC SERIE INDIVIDUELLE 95 GT INTERNATIONALE |
||||||||||
| 01 | Arbre a cames d'admission | 264' | 1 | 11311404660 | $920.70 | +vieille matière | Shop at ECS Tuning | |||
| 02 | Arbre à cames d'échappement | 260' | 1 | 11311317680 | $920.70 | +vieille matière | Shop at ECS Tuning | |||
| NE CONVENANT QU'AVEC SERIE INDIVIDUELLE 95 GT INTERNATIONALE |
||||||||||
| 02 | Arbre à cames d'échappement | 1 | 11311404662 | $920.70 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 03 | Soupape d'admission | 34,0/6,97MM | X | 11341401104 | $118.90 | Shop at ECS Tuning | ||||
| 04 | Soupape d'échappement | 30,5/6,95MM | X | 11341401105 | $177.00 | Shop at ECS Tuning | ||||
| 05 | Cuvette de ressort | X | 04/1994 | 11341307961 | $3.77 | Shop at ECS Tuning | ||||
| 05 | Cuvette de ressort | X | 11341404788 | $7.37 | Shop at ECS Tuning | |||||
| 06 | Jeu de ressort de soupape jaune/rouge | X | 11341315912 | $22.21 | Shop at ECS Tuning | |||||
| 07 | Jeu de reparation joint de soupape | 2 | 11349059172 | $46.94 | Shop at ECS Tuning | |||||
| 08 | Plateau de ressort superieur | D=28,5 MM | X | 11341307922 | $3.77 | Shop at ECS Tuning | ||||
| 09 | Demi segment d'arret | X | 11341307136 | $1.08 | Shop at ECS Tuning | |||||
| 10 | Poussoir | X | 11341401428 | $36.68 | Shop at ECS Tuning | |||||
| 11 | Plaque | 3,00 MM | X | 11321308204 | $7.57 | Shop at ECS Tuning | ||||
| 11 | Plaque | 3,05 MM | X | 11321308205 | $7.57 | Shop at ECS Tuning | ||||
| 11 | Plaque | 3,10 MM | X | 11321308206 | $7.57 | Shop at ECS Tuning | ||||
| 11 | Plaque | 3,15 MM | X | 11321308207 | $7.57 | Shop at ECS Tuning | ||||
| 11 | Plaque | 3,20 MM | X | 11321308208 | $7.57 | Shop at ECS Tuning | ||||
| 11 | Plaque | 3,25 MM | X | 11321308209 | $7.57 | Shop at ECS Tuning | ||||
| 11 | Plaque | 3,30 MM | X | 11321308210 | $7.57 | Shop at ECS Tuning | ||||
| 11 | Plaque | 3,35 MM | X | 11321308211 | $7.57 | Shop at ECS Tuning | ||||
| 11 | Plaque | 3,40 MM | X | 11321308212 | $7.57 | Shop at ECS Tuning | ||||
| 11 | Plaque | 3,45 MM | X | 11321308213 | $7.57 | Shop at ECS Tuning | ||||
| 11 | Plaque | 3,50 MM | X | 11321308214 | $9.70 | Shop at ECS Tuning | ||||
| 11 | Plaque | 3,55 MM | X | 11321308215 | $9.70 | Shop at ECS Tuning | ||||
| 11 | Plaque | 3,60 MM | X | 11321308216 | $7.57 | Shop at ECS Tuning | ||||
| 11 | Plaque | 3,65 MM | X | 11321308217 | $9.70 | Shop at ECS Tuning | ||||
| 11 | Plaque | 3,70 MM | X | 11321308218 | $7.57 | Shop at ECS Tuning | ||||
| 11 | Plaque | 3,75 MM | X | 11321308219 | $9.70 | Shop at ECS Tuning | ||||
| 11 | Plaque | 3,80 MM | X | 11321308220 | $9.70 | Shop at ECS Tuning | ||||
| 11 | Plaque | 3,85 MM | X | 11321308221 | $7.57 | Shop at ECS Tuning | ||||
| 11 | Plaque | 3,90 MM | X | 11321308222 | $7.57 | Shop at ECS Tuning | ||||
| 11 | Plaque | 3,95 MM | X | 11321308223 | $7.57 | Shop at ECS Tuning | ||||
| 11 | Plaque | 4,00 MM | X | 11321308224 | $7.57 | Shop at ECS Tuning | ||||
| 11 | Plaque | 4,05 MM | X | 11321308225 | $7.57 | Shop at ECS Tuning | ||||
| 11 | Plaque | 4,10 MM | X | 11321308226 | $7.57 | Shop at ECS Tuning | ||||
| 11 | Plaque | 4,15 MM | X | 11321308227 | $7.57 | Shop at ECS Tuning | ||||
| 11 | Plaque | 4,20 MM | X | 11321308228 | $7.57 | Shop at ECS Tuning | ||||
| 11 | Plaque | 4,25 MM | X | 11321308229 | $7.57 | Shop at ECS Tuning | ||||
| 11 | Plaque | 2,95 MM | X | 11341401415 | $9.38 | Shop at ECS Tuning | ||||
| 11 | Plaque | 2,90 MM | X | 11341401416 | $9.38 | Shop at ECS Tuning | ||||
| 11 | Plaque | 2,85 MM | X | 11341401417 | $9.38 | Shop at ECS Tuning | ||||
| 11 | Plaque | 2,80 MM | X | 11341401418 | $9.38 | Shop at ECS Tuning | ||||
| 11 | Plaque | 2,75 MM | X | 11341401419 | $9.38 | Shop at ECS Tuning | ||||
| 11 | Plaque | 2,70 MM | X | 11341401420 | $9.38 | Shop at ECS Tuning | ||||
| 11 | Plaque | 2,65 MM | X | 11341401422 | $9.38 | Shop at ECS Tuning | ||||
| 11 | Plaque | 2,60 MM | X | 11341401423 | $9.38 | Shop at ECS Tuning | ||||
| 11 | Plaque | 2.55 MM | X | 11341401424 | $9.38 | Shop at ECS Tuning | ||||
| 11 | Plaque | 2,50 MM | X | 11341401425 | $9.38 | Shop at ECS Tuning | ||||
| 11 | Plaque | 2,45 MM | X | 11341401426 | $9.38 | Shop at ECS Tuning | ||||
| 11 | Plaque | 2,40 MM | X | 11341401427 | $9.38 | Shop at ECS Tuning | ||||
| 11 | Plaque | 2,35 MM | X | 11341404871 | $9.38 | Shop at ECS Tuning | ||||
| 11 | Plaque | 2,30 MM | X | 11341404872 | $9.38 | Shop at ECS Tuning | ||||
| 11 | Plaque | 2,25 MM | X | 11341404873 | $9.38 | Shop at ECS Tuning | ||||
| 11 | Plaque | 2,20 MM | X | 11341404874 | $9.38 | Shop at ECS Tuning | ||||
| 11 | Plaque | 2,15 MM | X | 11341404875 | $9.38 | Shop at ECS Tuning | ||||
| 11 | Plaque | 2,10 MM | X | 11341404876 | $9.38 | Shop at ECS Tuning | ||||
| 11 | Plaque | 2,05 MM | X | 11341404877 | $9.38 | Shop at ECS Tuning | ||||
| 11 | Plaque | 2,00 MM | X | 11341404878 | $9.38 | Shop at ECS Tuning | ||||
| 12 | Necessaire plaque de compensation | 3,00-4,25MM | X | 11349061386 | $720.70 | arrêté | Shop at ECS Tuning | |||
