Réduct. gaz d'échappement - Pompe à air for BMW 3 Series E36 M3

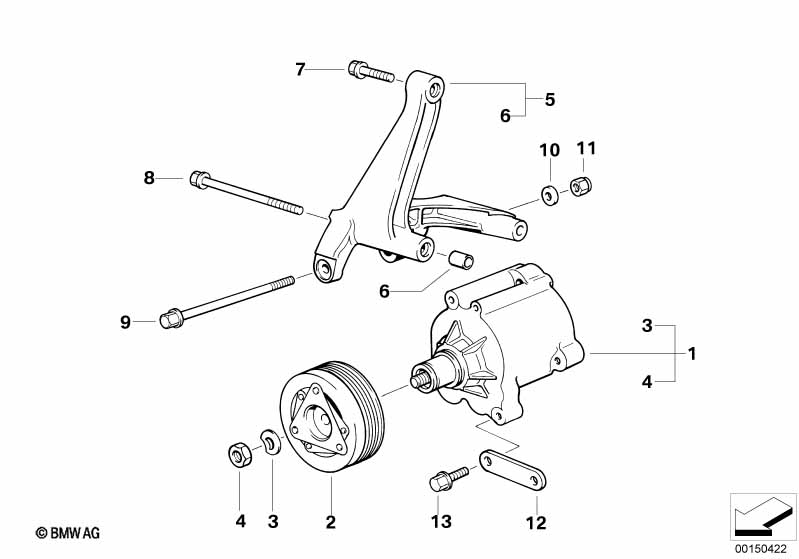

This Réduct. gaz d'échappement - Pompe à air technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pompe à air | 1 | 11721401825 | $662.54 | arrêté | Shop at ECS Tuning | ||||
| uniquement en combinaison avec | ||||||||||
| -- | Circlip | D=29,3MM | 1 | 11721315013 | $5.72 | Shop at ECS Tuning | ||||
| -- | Circlip | D=38,8MM | 1 | 11721403076 | $2.90 | Shop at ECS Tuning | ||||
| -- | Coupleur electro-magnetique | 1 | 11721738946 | $310.95 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| -- | Ecrou à six pans | M14X1,5 | 1 | 07119901309 | $1.65 | Shop at ECS Tuning | ||||
| -- | Rondelle elastique | B14 | 1 | 07119932147 | $0.20 | Shop at ECS Tuning | ||||
| 02 | Coupleur electro-magnetique | 1 | 11721738946 | $310.95 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| uniquement en combinaison avec | ||||||||||
| -- | Circlip | D=29,3MM | 1 | 11721315013 | $5.72 | Shop at ECS Tuning | ||||
| -- | Circlip | D=38,8MM | 1 | 11721403076 | $2.90 | Shop at ECS Tuning | ||||
| 03 | Rondelle elastique | B14 | 1 | 07119932147 | $0.20 | Shop at ECS Tuning | ||||
| 04 | Ecrou à six pans | M14X1,5 | 1 | 07119901309 | $1.65 | Shop at ECS Tuning | ||||
| 05 | Support | 1 | 11721318994 | $41.57 | Shop at ECS Tuning | |||||
| Pour véhicules avec Climatiseur |
=Oui |
|||||||||
| 05 | Support | 1 | 11721402236 | $27.68 | Shop at ECS Tuning | |||||
| 06 | Douille d'ajustage | D=11,1MM | 2 | 11121726245 | $1.62 | Shop at ECS Tuning | ||||
| 07 | Vis cylindrique avec rondelle | M8X30-Z3-8.8-ZN | 1 | 07119920137 | $0.62 | Shop at ECS Tuning | ||||
| Pour véhicules avec Climatiseur |
=Oui |
|||||||||
| 07 | Vis six pans avec rondelle | M8X90-U1 | 1 | 07119905392 | $1.53 | Shop at ECS Tuning | ||||
| 08 | Vis cylindrique | M8X104-Z3 | 2 | 11721738783 | $3.57 | Shop at ECS Tuning | ||||
| 09 | Vis six pans | M8X110-8.8 | 1 | 07119906728 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Rondelle elastique | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Plaque d'appui | 8,4X16X1,6-ZNNV | 1 | 07119907030 | Shop at ECS Tuning | |||||
| 11 | Ecrou à six pans autobloquant | M8 | 1 | 07129922716 | $0.36 | Shop at ECS Tuning | ||||
| 12 | Tole de fixation | 1 | 11721402327 | $2.51 | Shop at ECS Tuning | |||||
| 13 | Vis six pans avec rondelle | M8X20-U1-8.8 | 2 | 07119904992 | $0.55 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 M3 Réduct. gaz d'échappement - Pompe à air?
- This technical diagram illustrates the Réduct. gaz d'échappement - Pompe à air within the Moteur group for the 3 Series E36 M3. It provides a detailed exploded view of the components, identifying key parts such as the Pompe à air (Part #11721401825).
- Which models use the hardware listed in this Réduct. gaz d'échappement - Pompe à air?
- The hardware and components featured in the Réduct. gaz d'échappement - Pompe à air are specific to the 3 Series E36 M3. These technical specifications ensure that parts like the Pompe à air (11721401825) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Réduct. gaz d'échappement - Pompe à air assembly?
- Each item in the Réduct. gaz d'échappement - Pompe à air corresponds to the numbered list below the illustration. For the 3 Series E36 M3, you can identify the Pompe à air by locating its position on the schematic, which then links to the official BMW part number 11721401825 for the Moteur section.
