Pièces de bloc-moteur for BMW 3 Series E36 318ti (1999)

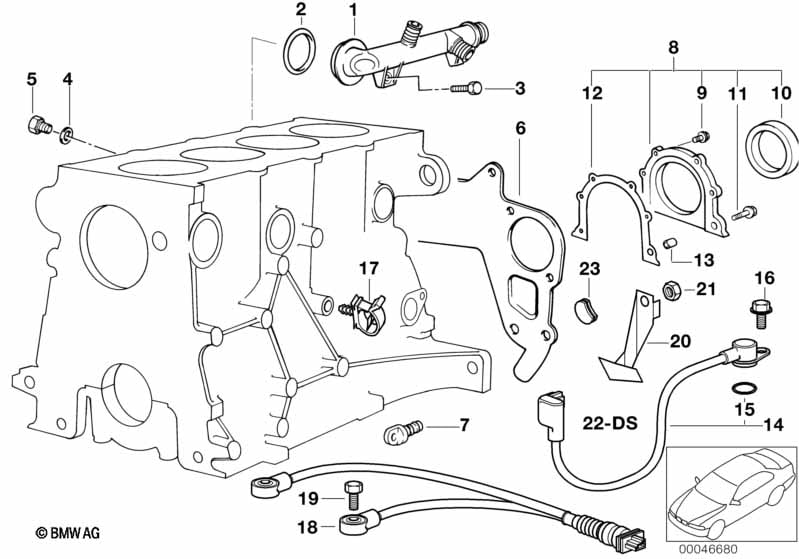

This Pièces de bloc-moteur technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Raccord | 1 | 11531714738 | $17.93 | Shop at ECS Tuning | |||||
| 02 | Joint torique | 32X5 | 1 | 11531709157 | $2.04 | Shop at ECS Tuning | ||||
| 03 | Vis six pans avec rondelle | M6X16-Z3 | 2 | 07119915123 | $0.36 | Shop at ECS Tuning | ||||
| 04 | Anneau d'étanchéité | A14X18-AL | 1 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Vis bouchon | AM14X1,5 | 1 | 07119909704 | Shop at ECS Tuning | |||||
| 06 | Tôle de recouvrement | 1 | 05/1999 | 11142243305 | $11.15 | arrêté | Shop at ECS Tuning | |||
| uniquement en combinaison avec | ||||||||||
| -- | Couvercle de fermeture | 1 | 05/1999 | 11141730453 | $3.22 | Shop at ECS Tuning | ||||
| 07 | Bouchon | 11,50MM | 1 | 11111714541 | $1.60 | Shop at ECS Tuning | ||||
| 08 | Jeu de couvercles | 1 | 11141437774 | $94.60 | Shop at ECS Tuning | |||||
| 09 | Vis six pans avec rondelle | M6X25-ZNNIV SI | 4 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 10 | Joint d'arbre | 90X110X12 | 1 | 11142249533 | $58.96 | Shop at ECS Tuning | ||||
| 11 | Vis six pans avec rondelle | M8X32-Z1 | 2 | 11141744147 | $0.85 | Shop at ECS Tuning | ||||
| 12 | Joint metal | 1 | 11141432240 | $3.10 | Shop at ECS Tuning | |||||
| 13 | Douille d'ajustage | D=10,5MM | 2 | 11121726238 | $1.62 | Shop at ECS Tuning | ||||
| 14 | Générateur d'impulsion, vilebrequin | 1 | 12141247622 | $116.05 | +vieille matière | Shop at ECS Tuning | ||||
| 15 | Joint torique | 20X1,5 | 1 | 12141743476 | $0.38 | Shop at ECS Tuning | ||||
| 16 | Vis cylindrique avec rondelle | M6X16-Z1-8.8 | 1 | 07119902316 | $2.84 | Shop at ECS Tuning | ||||
| 17 | Support de conduite | 1 | 12521741316 | $0.47 | Shop at ECS Tuning | |||||
| 18 | Palpeur de chocs | 1 | 12141247993 | $107.22 | Shop at ECS Tuning | |||||
| 19 | Vis six pans | M8X28-ZN | 2 | 07119913659 | $0.47 | arrêté | Shop at ECS Tuning | |||
| 20 | Support | 1 | 12521247947 | $1.98 | Shop at ECS Tuning | |||||
| 21 | Ecrou a brides | M7 | 1 | 11617545279 | $0.47 | Shop at ECS Tuning | ||||
| 22 | Pochette joints carter mot. sans amiante | 1 | 11111743981 | $131.61 | +vieille matière | Shop at ECS Tuning | ||||
| 23 | Couvercle de fermeture | 1 | 05/1999 | 11141730453 | $3.22 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
