Carter d'huile/indicateur niveau d'huile for BMW 3 Series E36 318ti (1999)

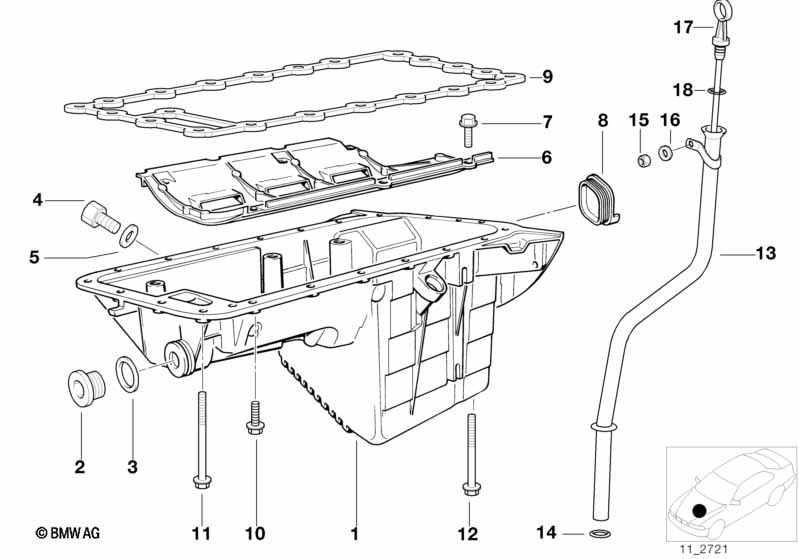

This Carter d'huile/indicateur niveau d'huile technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carter d'huile | 1 | 11131247995 | $346.42 | +vieille matière | Shop at ECS Tuning | ||||
| uniquement en combinaison avec | ||||||||||
| -- | Recouvrement | 1 | 11131717720 | $5.36 | Shop at ECS Tuning | |||||
| 02 | Vis bouchon | M26X1,5-AL4 | 1 | 07119900198 | $10.47 | Shop at ECS Tuning | ||||
| 03 | Anneau d'étanchéité | A26X31-AL | 1 | 07119963418 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Vis bouchon | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 05 | Anneau d'étanchéité | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 06 | Tole a decantation d'huile | 1 | 11131727890 | $32.22 | Shop at ECS Tuning | |||||
| 07 | Vis à collet | M6X20 | 6 | 11131247056 | $0.47 | Shop at ECS Tuning | ||||
| 08 | Recouvrement | 1 | 11131717720 | $5.36 | Shop at ECS Tuning | |||||
| 09 | Joint de profil | 1 | 11131739813 | $23.58 | Shop at ECS Tuning | |||||
| 10 | Vis six pans avec rondelle | M6X30-ZNNIV SI | X | 07119906123 | $0.81 | Shop at ECS Tuning | ||||
| 11 | Vis six pans avec rondelle | M6X80-U1-8.8 | 1 | 07119906085 | Shop at ECS Tuning | |||||
| 12 | Vis six pans avec rondelle | M6X60 | 2 | 11131247070 | $0.58 | Shop at ECS Tuning | ||||
| 13 | Tuyau de guidage | 1 | 11431247803 | $40.73 | Shop at ECS Tuning | |||||
| 14 | Joint torique | 14,5X3 | 1 | 11431287541 | $1.19 | Shop at ECS Tuning | ||||
| 15 | Ecrou six pans avec plaque | M6-8-ZNNIV SI | 1 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 16 | Plaque d'appui | A6,4-ZNNIV SI | 1 | 07119904202 | Shop at ECS Tuning | |||||
| 17 | Jauge d'huile | 1 | 11431247531 | $15.30 | Shop at ECS Tuning | |||||
| 18 | Joint torique | 9X2,2 | 2 | 11431717666 | $0.73 | Shop at ECS Tuning | ||||
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318ti Carter d'huile/indicateur niveau d'huile?
- This technical diagram illustrates the Carter d'huile/indicateur niveau d'huile within the Moteur group for the 3 Series E36 318ti produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Carter d'huile (Part #11131247995).
- Which models use the hardware listed in this Carter d'huile/indicateur niveau d'huile?
- The hardware and components featured in the Carter d'huile/indicateur niveau d'huile are specific to the 3 Series E36 318ti produced during 1999. These technical specifications ensure that parts like the Carter d'huile (11131247995) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Carter d'huile/indicateur niveau d'huile assembly?
- Each item in the Carter d'huile/indicateur niveau d'huile corresponds to the numbered list below the illustration. For the 3 Series E36 318ti, you can identify the Carter d'huile by locating its position on the schematic, which then links to the official BMW part number 11131247995 for the Moteur section.
