Carter-cylindres-Reniflard for BMW 5 Series G30 LCI 530i (2023)

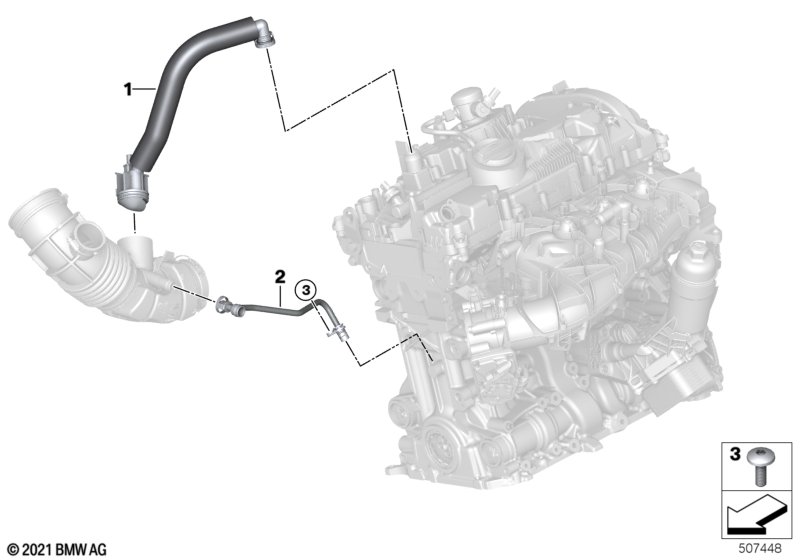

This Carter-cylindres-Reniflard technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pour véhicules avec Technologie d'échappement C6B RDE ou Fournitures supplémentaires |
S1DDA=Oui S1DZA=Oui |
||||||||
| 01 | Conduite de reniflard du moteur | RDE2 | 1 | 11159846388 | Shop at ECS Tuning | |||||
| 02 | Tubulure de balayage | 1 | 11155A01CC5 | Shop at ECS Tuning | ||||||
| 03 | Vis à tête bombée | 1 | 07142994134 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 LCI 530i Carter-cylindres-Reniflard?
- This technical diagram illustrates the Carter-cylindres-Reniflard within the Moteur group for the 5 Series G30 LCI 530i produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the Conduite de reniflard du moteur (Part #11159846388).
- Which models use the hardware listed in this Carter-cylindres-Reniflard?
- The hardware and components featured in the Carter-cylindres-Reniflard are specific to the 5 Series G30 LCI 530i produced during 2023. These technical specifications ensure that parts like the Conduite de reniflard du moteur (11159846388) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Carter-cylindres-Reniflard assembly?
- Each item in the Carter-cylindres-Reniflard corresponds to the numbered list below the illustration. For the 5 Series G30 LCI 530i, you can identify the Conduite de reniflard du moteur by locating its position on the schematic, which then links to the official BMW part number 11159846388 for the Moteur section.
